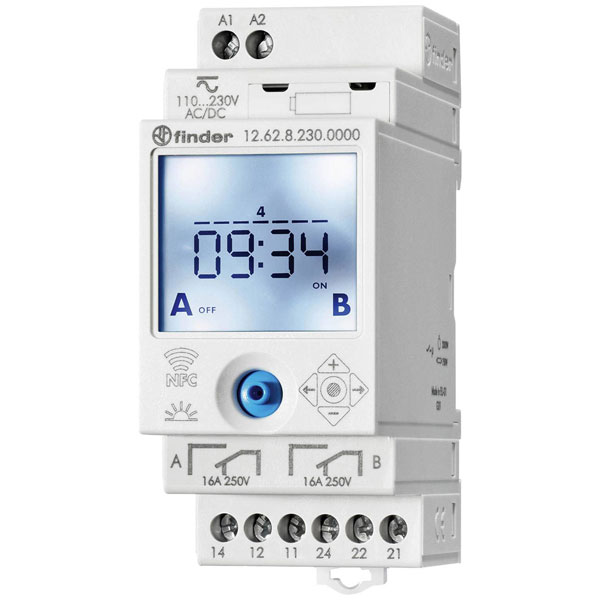

Finder 12.62.8.230.0000 DIN Rail timer 230V AC/DC week settings smart app

The Finder 12.62.8.230.0000 is a multifunction relay suitable for both 230 V DC and 230 V AC applications. This DIN rail mount timer features week settings, making it ideal for controlling lighting and other scheduled operations. Typical applications include use as a delay switch or staircase switch in residential and commercial environments.

Type	DIN rail mount timer
24 h program	true
60 min program	true
Accuracy per day	1s
Annual program	false
Astro program	false
Automatic switching summer/winter time	true
Autonomy in hours	N/A
Autonomy in years	6
Contact Configuration	2 change-overs
Contact Type	Change-over contact (NO/NC)
Cycle program	true
Degree of protection (IP)	IP20
Depth	56.5mm
External programming	true
External push button input	N/A
Frequency supply voltage	50 - 60Hz
GPS (global positioning system)	false
Height	84mm
Holiday program	false
Hour meter	N/A
Impulse program	true
IP Rating	IP20
Mains synchronous	false
Max. switching capacity	750VA
Max. switching power LED	N/A
Maximum Temperature	+50°C
Min. temperature	-20°C
Misc Attribute 2	Week settings
Mounting method	DIN rail
Nominal switching current at 250 V AC	16A
Number of Channels	2
Number of Contacts	2
Number of memory locations	50
Number of switching intervals	50
Operating Voltage	90, 90 - 264, 264 V DC, V AC
Potential free switch contact	true
Quartz controlled	true
Radio-controlled	true
Radio-controlled (DCF77)	false
Random program	N/A
Shortest switching time channel 1	1min
Shortest switching time channel 2	N/A
Suitable for manual operation	true
Supply Voltage	110 - 230V
Switching current (max.)	16A
Switching distance (min)	1min
Switching preselection	N/A
Switching voltage (max.)	250V AC
Text guidance in display	true
Voltage type (supply voltage)	AC/DC
Weekly program	true
Weight	0
Width	35mm
Width in number of modular spacings	2
With memory card	N/A
