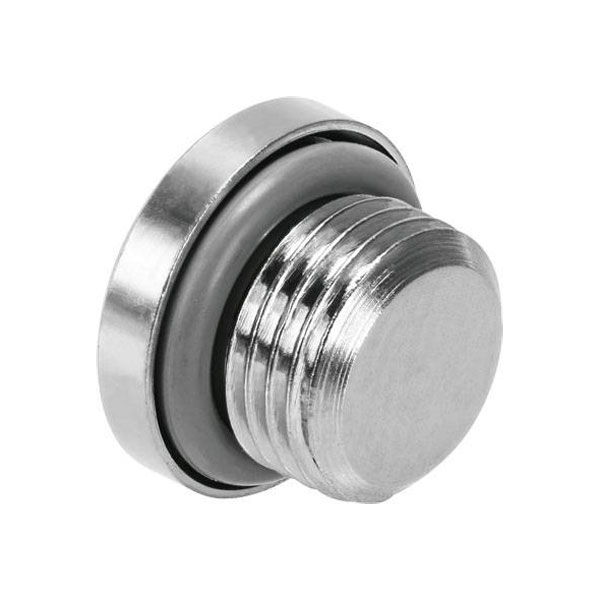

FESTO 578407 NPQH Filler plug G1/4" seal -0.95 to 20 bar 10 pack

The FESTO filler plug, model NPQH-BK-G14-P10, is designed with an external G1/4" thread and operates under pressures ranging from -0.95 to 20 bar. This durable component, identified by part number 578407, is commonly used for sealing and protecting pneumatic systems. It is suitable for applications requiring reliable and leak-proof closure within specified pressure limits.

Type	Filler plug
Connection	G1/4"
External thread	G1/4"
Material (details)	Brass, nickel plated
Max. operating pressure	20bar
Misc Attribute	Corrosion resistance class KBK: 3-strong corrosion stress
Operating medium	Compressed air according to ISO 8573-1:2010 [7:-:-]
Operating pressure (min.)	-0.95bar
Pressure Range	-0.95 up to 20 bar
