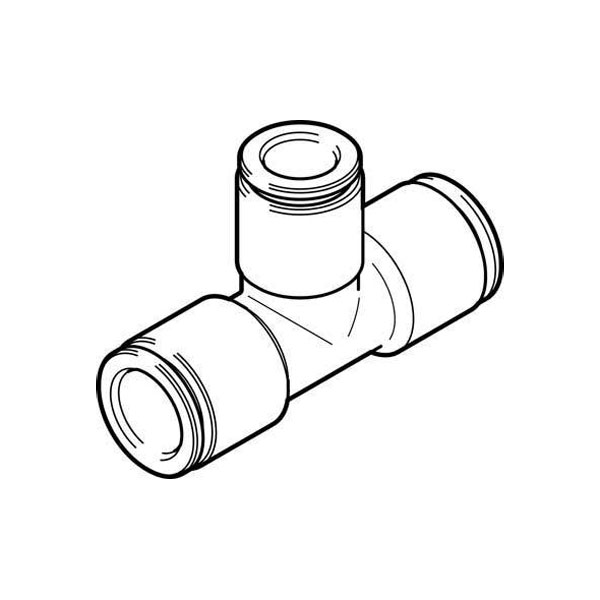

FESTO 578387 Connector piece 8 mm external thread

The Festo NPQH-T-Q8-Q6-P10 578387 connector piece features an external thread of 8 mm, making it suitable for various pneumatic applications. Manufactured by Festo, it is designed for reliable and secure connections in pneumatic systems. Typical applications include use in industrial automation and machinery where precise air flow control is required.

Type	Connector piece
External thread	8mm
Material	Brass (Ni-plated)
Max. ambient temperature	150°C
Max. operating pressure	20bar
Min. ambient temperature	0°C
Min. operating pressure	-0.95bar
Misc Attribute	T-plug-in connection NPQH-T-Q8-Q6-P 10 size = Standard, nominal width = 5 mm, mounting position=any, container size = 10, constructive design = Push-pull principle
Operating medium	Compressed air according to ISO 8573-1:2010 [7:-:-]
