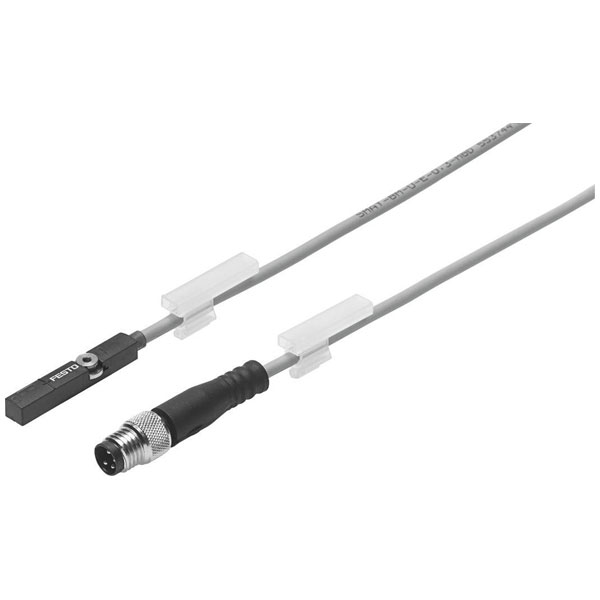

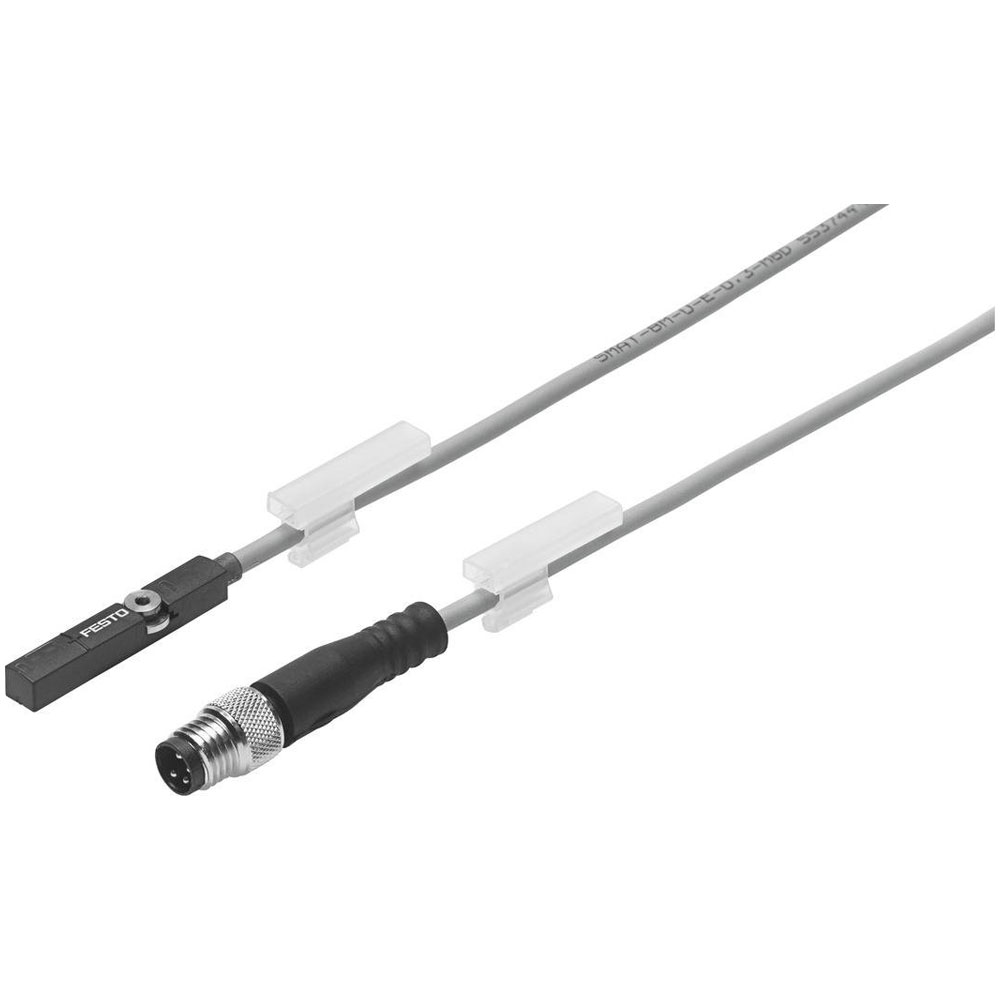

FESTO 553744 SMAT-8M-U-E-03-M8D T-slot position transmitter CE marked

The Festo SMAT-8M-U-E-0,3-M8D is a position transmitter designed for precise range and distance sensing. This compact sensor features a 30 V DC power supply and is commonly used in automation systems for proximity alert and distance detection. Typical applications include monitoring and controlling the position of mechanical components in industrial machinery.

Type	Position transmitter
Cable Length	30.00cm
Connection	Cable + connector
Jacket Material	TPE-U(PUR)
Max. operating voltage	30V DC
Maximum Temperature	+75°C
Min. operating voltage	15V DC
Min. temperature	-25°C
Misc Attribute	SMAT-8M-U-E-0,3-M8D
Nominal Voltage	30V
Number of pins	4
Resolution	0.05mm
Thread type connection side	M8
