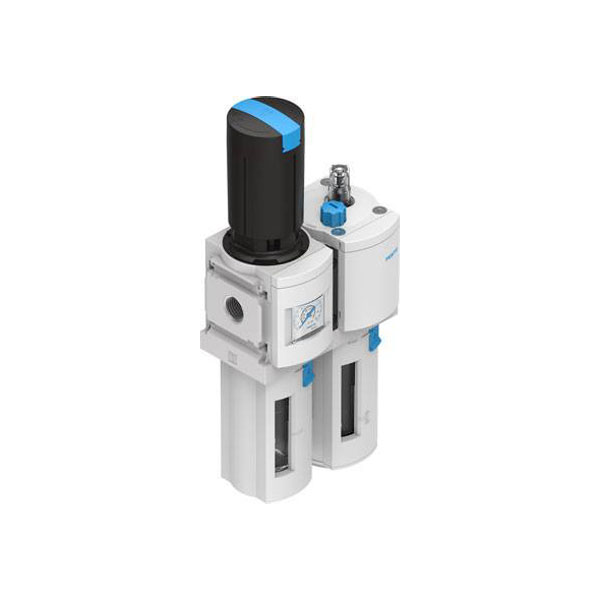

FESTO 530244 MSB6-1/2-FRC5:J1M1 maintenance module 20 bar air treatment

The Festo 530244 maintenance module is designed for use with compressed air and inert gases, featuring a maximum operating pressure of 20 bar. It is a sturdy and reliable component suitable for maintaining pneumatic systems in industrial settings. The part is commonly used in applications involving air filtration, pressure regulation, and air lubrication.

Type	Maintenance module
Connection	G1/2
Control range	0.5 bar-12bar
Device temperature (max.)	+60°C
Filter pore size	40µm
Internal thread	1/2"
Material (details)	Die-cast aluminum, PC
Max. flow	3700l/min
Max. operating pressure	20bar
Min. device temperature	-10°C
Min. operating pressure	1.5bar
Misc Attribute	MSB6-1/2-FRC5:J1M1
Operating medium	Inert Gases;; Compressed air according to ISO 8573-1:2010 [--]: 4:
Size	6
Weight	1495g
