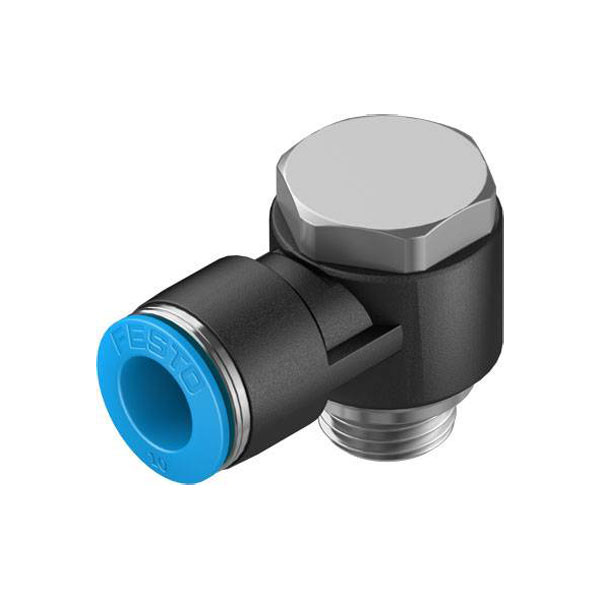

FESTO 186143 Screw Fastener G1/4" external thread 1pc

Order Code:

03-2483

Brand: FESTO MPN: 186143

RoHS Compliant
Country of Origin: Taiwan

Discontinued

Product Details
Data Sheets

Festo manufactures the QSLV-G1/4-10 screw fastener, designed with an external G1/4" thread. This pneumatic connector is ideal for secure and efficient airflow connections in industrial applications. Commonly used in automated systems, it ensures reliable performance in a variety of pneumatic setups.

External thread	G1/4"
Manufacturer part #	186143
Material	PBT
Max. ambient temperature	80°C
Max. operating pressure	6bar
Min. ambient temperature	-10°C
Min. operating pressure	-0.95bar
Misc Attribute	L-plug-in gland QSLV-G1/4-10 360° can be aligned, external thread with hexagon. Size = Standard, nominal width = 5.3 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10
Operating medium	Compressed air according to ISO 8573-1:2010 [7:-:-]
Type	Screw fastener
