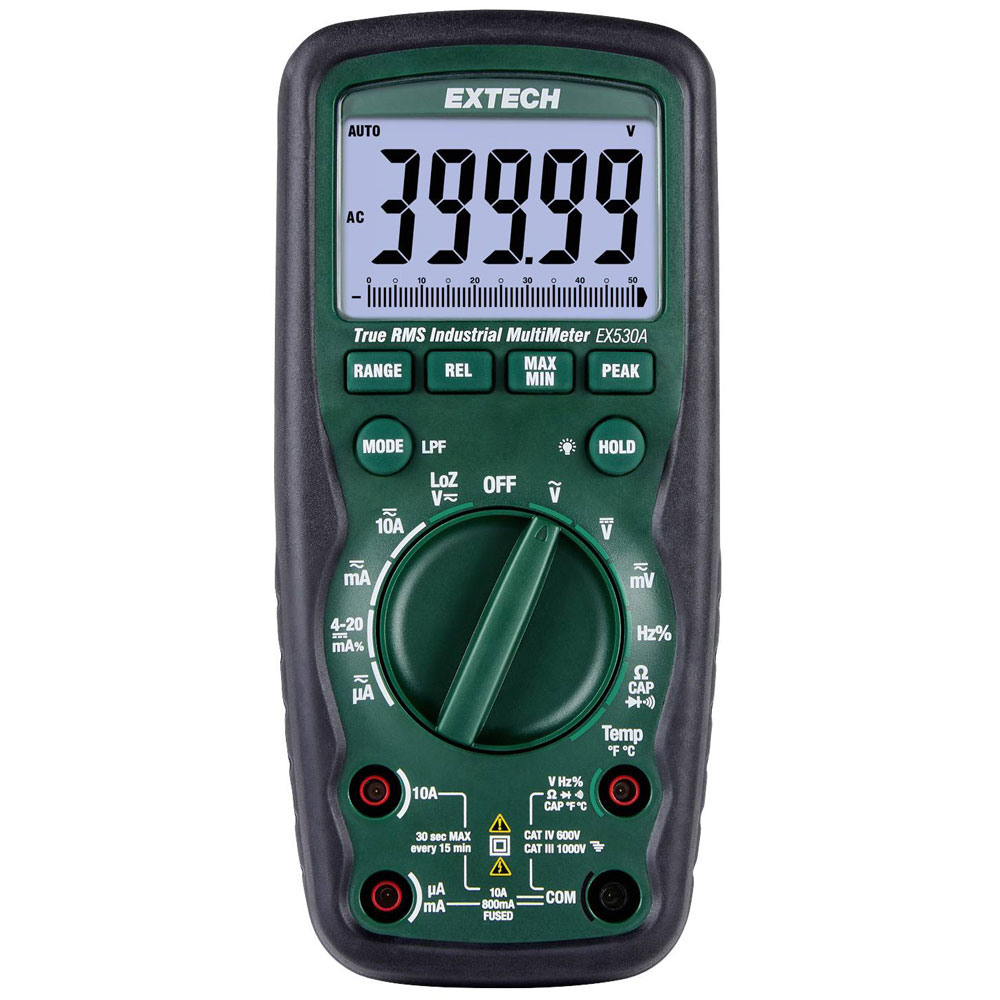

The Extech EX530A is a versatile handheld multimeter renowned for its precision, boasting a display capable of 50,000 counts. Ideal for both industrial and residential use, this tester efficiently measures voltage, current, and frequency up to CAT IV 600 V. Designed for professionals, the Extech EX530A provides reliable voltage readings and is a valuable tool for diagnostic and troubleshooting tasks.
| Type |
Handheld multimeter |
| A AC reading range (min.) |
0.01µA |
| A DC reading range (max.) |
10A |
| Amperage reading range AC (max.) |
10A |
| Amperage reading range DC (min.) |
0.01µA |
| Basic accuracy |
0.06% |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current reading |
AC/DC |
| Dim |
(L x W x H) 55 x 83 x 183 mm |
| Display |
Digital |
| Display (counts) |
50000 |
| Frequency reading range |
0.001 Hz -10MHz |
| Height |
183mm |
| Interfaces |
none |
| Length |
55mm |
| Measurement type (details) |
True RMS |
| Misc Attribute |
Extech EX530A |
| Power supply (details) |
9 V battery pack |
| Reading category |
CAT IV 600 V |
| Reading range - capacity |
0.01 nF - 99.99mF |
| Reading range - resistance |
0.1 Ω - 50MΩ |
| Temperature reading range (max.) |
+760°C |
| Temperature reading range (min.) |
-45°C |
| V AC reading range (max.) |
1000V |
| V AC reading range (min.) |
0.01mV |
| Voltage DC reading range (max.) |
1000V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.01mV |
| Weight |
380g |
| Width |
83mm |
