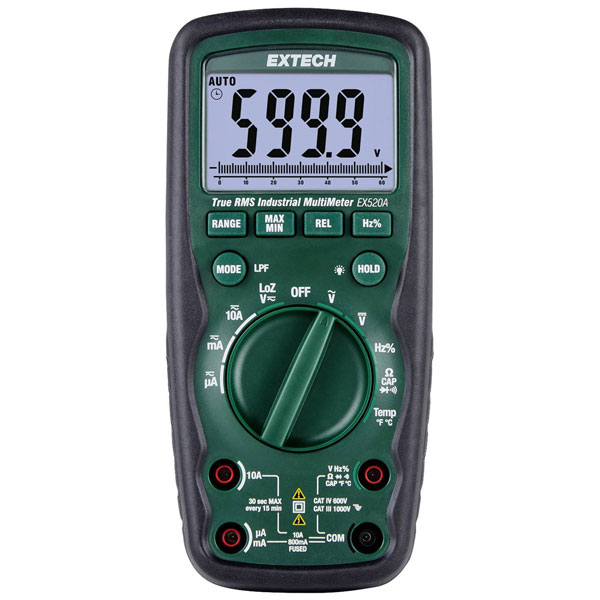

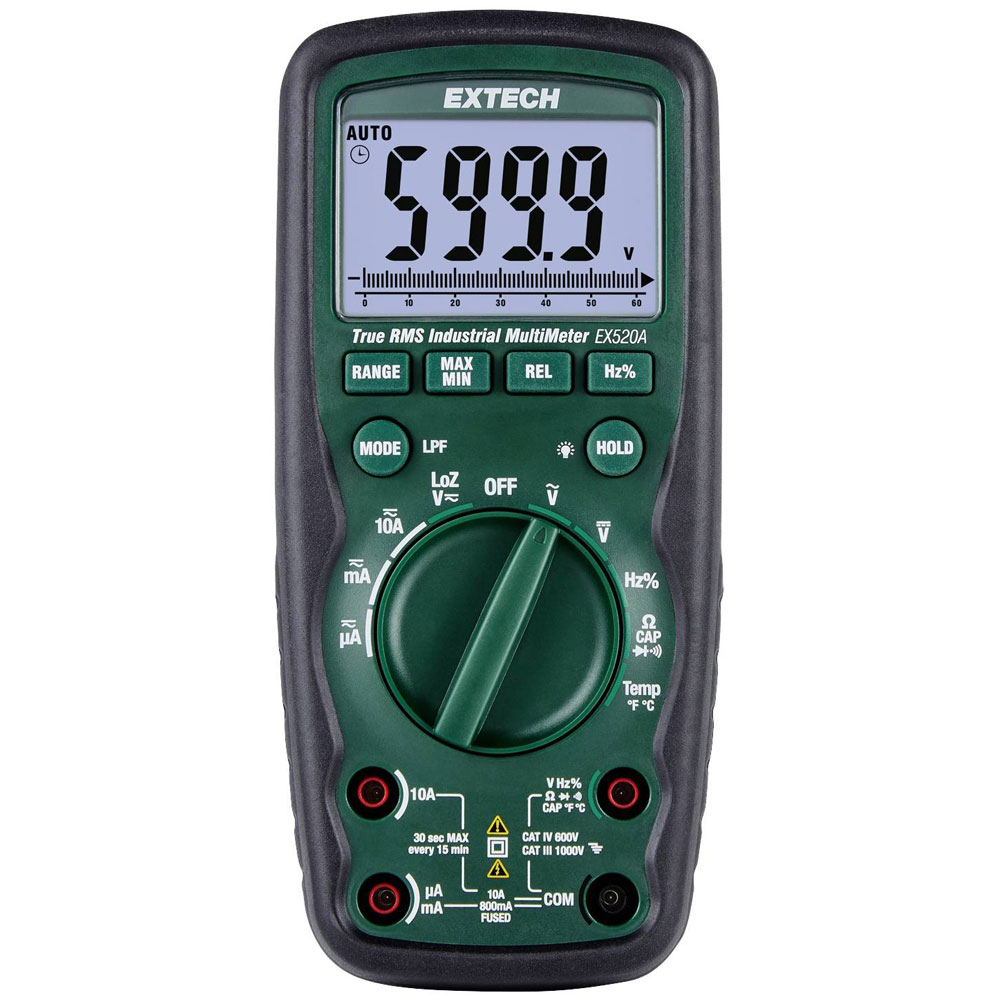

The Extech EX520A is a handheld digital multimeter featuring CAT IV 600 V safety rating and a 6000-count display. Manufactured by Extech, this versatile device is ideal for measuring voltage, current, and frequency in various electrical applications. It is commonly used by electricians and technicians for accurate voltage and current readings.
| Type |
Handheld multimeter |
| A AC reading range (min.) |
0.1µA |
| A DC reading range (max.) |
10A |
| Amperage reading range AC (max.) |
10A |
| Amperage reading range DC (min.) |
0.1µA |
| Basic accuracy |
0.09% |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current reading |
AC/DC |
| Dim |
(L x W x H) 55 x 83 x 183 mm |
| Display |
Digital |
| Display (counts) |
6000 |
| Frequency reading range |
0.001 Hz -10MHz |
| Height |
183mm |
| Interfaces |
none |
| Length |
55mm |
| Measurement type (details) |
True RMS |
| Misc Attribute |
Extech EX520A |
| Power supply (details) |
9 V battery pack |
| Reading category |
CAT IV 600 V |
| Reading range - capacity |
0.01 nF - 99.99mF |
| Reading range - resistance |
0.1 Ω - 40 MΩMΩ |
| Temperature reading range (max.) |
+760°C |
| Temperature reading range (min.) |
-45°C |
| V AC reading range (max.) |
1000V |
| V AC reading range (min.) |
1mV |
| Voltage DC reading range (max.) |
1000V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.1mV |
| Weight |
375g |
| Width |
83mm |
