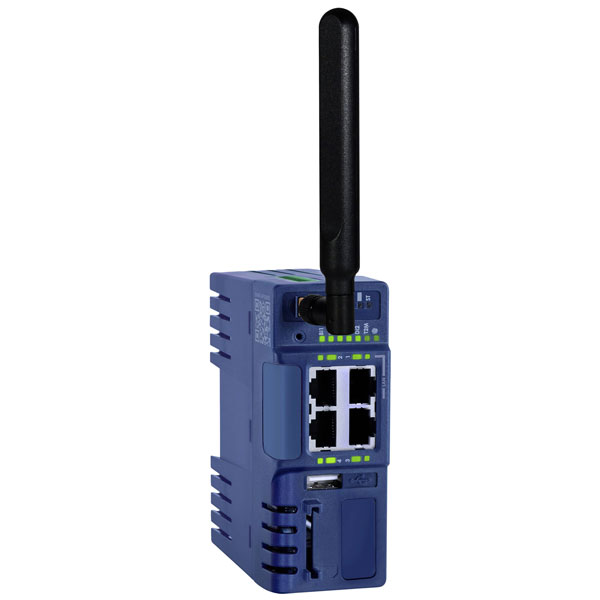

EWON EC7133L_00MA Cozy+ VPN Router 4G Ethernet 24V DC 2 In 1 Out

The EWON EC7133L_00MA is a remote maintenance router featuring 4G, Ethernet, and USB interfaces, with two inputs and one 24 V DC output. This versatile device is designed for facilitating remote monitoring and control, making it ideal for industrial applications. It allows seamless communication and data acquisition, serving as an effective gateway for interfaces like Modbus and Ethernet.

Type	Remote maintenance router
Current Consumption	215mA
Dim	(W x H) 43.6 mm x 108 mm
Height	108mm
I/O number	3
Interfaces	WAN Ethernet: Up to 3 ports, 10/100 MB EthernetLAN Ethernet: Up to 4 ports, 10/100 MB EthernetField interface: Up to 10 USB 2.0 connections, female connector 2.0
Max. Current Consumption	495mA
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Misc Attribute 1	1xDO: Open drain (MOSFET) 200mA; insulation 1.5kV;0 to 24 V DC; 1.5 kV insulation
Misc Attribute 2	HMS Industrial
Number of Inputs	2
Number of Outputs	1
Operating Temperature	-25 up to 60°C
Plastic free packaging	Plastic-free packaging
Width	43.6mm
