Escha 8046926 AL-WAS12-2/S370 Cable Flexible Oil/Flame-Resistant -40°C to 90°C

Escha
Extended range
Order Code:

11-7756

Brand: Escha MPN: 8046926 EAN-13: 2050001552594
Qty Unit Price (Ex VAT)
1+ £28.64
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 5 weeks

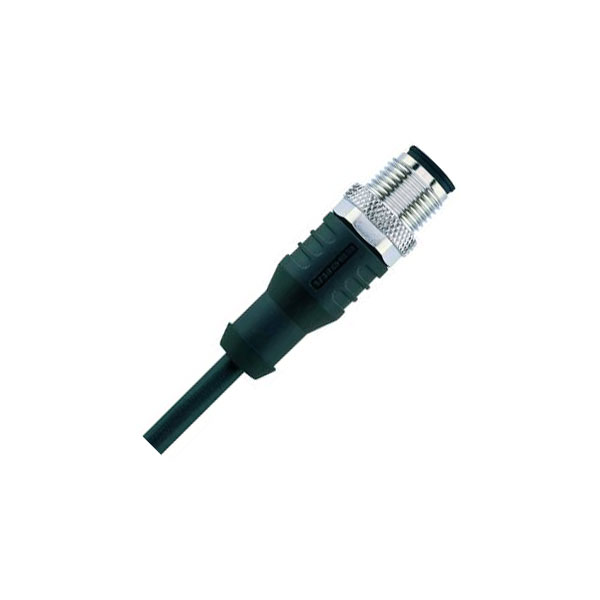

Manufactured by Escha, the 8046926 AL-WAS12-2/S370 is a sensor/actuator connector (pre-fabricated) featuring sturdy design for reliable connectivity. It is crafted for industrial environments, providing efficient electrical connections in automation systems. Typical applications include facilitating connections between sensors, actuators, and control systems in engineering and manufacturing settings.
Type Sensor/actuator connector (pre-fab)
Cable colour Black
Cable length 2.00m
Coding A
Connection Open end cable
Connection side A Cable, open end
Connection side B Customisable
Connector standard Sensor connector
Connector type Plug, straight
Contact material CuSn
Contact surface Gold plated
Cross-section (sensor/actuator wiring) 0.14mm²
IP rating IP67/IP69K
Jacket material PUR
max. cross section 0.14mm²
Max. temperature +90°C
Min. temperature -30°C
Misc Attribute AL-WAS12-2/S370
No. of pins 12
Nominal current 4A
Nominal current - rounded value 4A
Nominal voltage 30V
RoHS-compliant Yes
Seal type Screw-on
Thread type connection side M12
