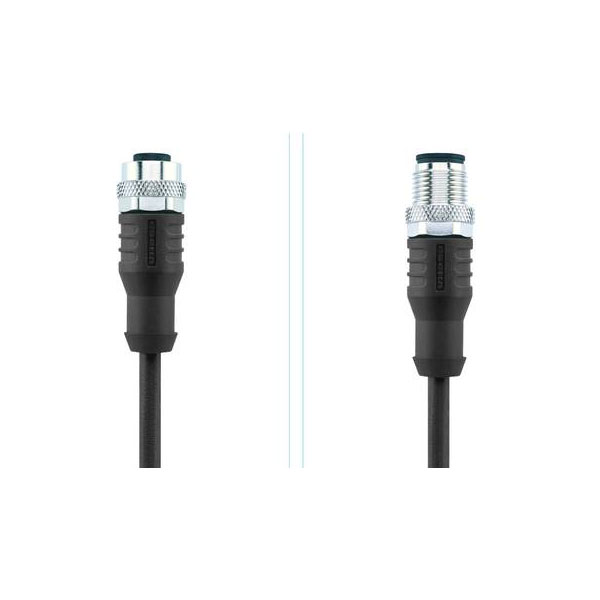

Escha 8044054 AL-WAK4.5-5 Cable Assembly, 4.5m, Aluminium Connectors

Escha
Standard range
Order Code:

11-7726

Brand: Escha MPN: 8044054 EAN-13: 2050001554307
Qty Unit Price (Ex VAT)
1+ £28.74
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

Escha manufactures the part with reference 8044054 AL-WAK4.5-5-AL-WAS4.5/S370, a sensor/actuator connector, pre-fabricated for ease of use. This connector features high reliability and robust construction suitable for demanding environments. It's typically utilised in industrial automation and machinery for secure sensor or actuator connections.
Type Sensor/actuator connector (pre-fab)
Cable colour Black
Cable length 5.00m
Coding A
Connection side A M12 plug, straight
Connection side B M12 plug, straight
Connector standard Sensor connector
Contact material CuSn
Contact surface Gold plated
Cross-section (sensor/actuator wiring) 0.34mm²
IP rating IP67/IP69K
Jacket material PUR
Manufacturer part # 8044054
max. cross section 0.34mm²
Max. temperature +90°C
Min. temperature -30°C
Misc Attribute AL-WAK4.5-5-AL-WAS4.5/S370
No. of pins 5
Nominal current 4A
Nominal current - rounded value 4A
Nominal voltage 60V
RoHS-compliant Yes
Seal type Screw-on
Thread type connection side M12
