Escha 8043817 Control Cable, Flexible, Oil-Resistant, Flame-Resistant

Escha
Extended range
Order Code:

11-7710

Brand: Escha MPN: 8043817 EAN-13: 2050001552723
Qty Unit Price (Ex VAT)
1+ £14.09
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 3 weeks

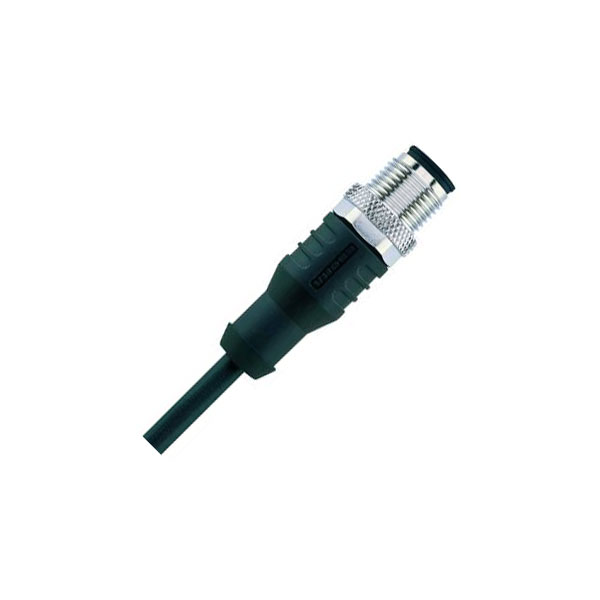

Escha manufactures the 8043817 AL-WAS4-2/S370, a prefabricated sensor/actuator connector. This connector features robust construction for reliable connectivity in industrial environments. It is typically used in automation systems for efficient signal transmission.
Type Sensor/actuator connector (pre-fab)
Cable colour Black
Cable length 2.00m
Coding A
Connection Open end cable
Connection side A Cable, open end
Connection side B Customisable
Connector standard Sensor connector
Connector type Plug, straight
Contact material CuSn
Contact surface Gold plated
Cross-section (sensor/actuator wiring) 0.34mm²
IP rating IP67/IP69K
Jacket material PUR
Manufacturer part # 8043817
max. cross section 0.34mm²
Max. temperature +90°C
Min. temperature -30°C
Misc Attribute AL-WAS4-2/S370
No. of pins 4
Nominal current 4A
Nominal current - rounded value 4A
Nominal voltage 250V
RoHS-compliant Yes
Seal type Screw-on
Thread type connection side M12
