ENTES DIN Rail Mount Voltmeter, EVM-3-xx Series

ENTES Brand: ENTES

A range of ENTES DIN Rail Mount Voltmeters from the EVM-3 Series. The voltmeters measure the RMS voltages from 10 to 600V AC on Single Phase networks and save the minimum and maximum values. In case of power failure, the data is retained in the memory. With a voltage transformer, a measuring range up to 40kV is possible. The voltage transformer ratio is adjustable via the program menu.

  • Operating voltage 110/230V/ AC
  • Measuring range 10 - 600V/ AC
  • Max./ Min. Values
  • Output relay
  • Hysteresis
  • Individual limits
  • Available in ENTES EVM 3-48, EVM 3-72 and EVM 3-96 size options
Description Image Product Buy Pricing (Ex VAT)

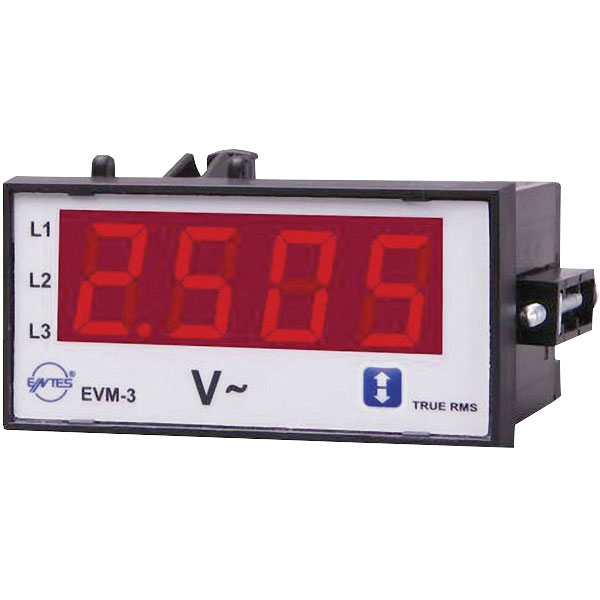

ENTES EVM-3-48 Digital Panel Meter
ENTES EVM-3-48 Digital Panel Meter
Standard range
Order code: 59-5508
MPN: EVM-3-48

4 in stock, despatched in 4 working days
1+ £58.92
Price per unit Ex VAT
ENTES EVM-3-96 Digital Panel Meter
ENTES EVM-3-96 Digital Panel Meter
Standard range
Order code: 59-5515
MPN: EVM-3-96

5 in stock, despatched in 4 working days
1+ £52.79
Price per unit Ex VAT

Mftrs. Part No.DescriptionDimensionsTypeOrder code
EVM-3-48DIN Rail Voltmeter48x96mmPR2059-5508
EVM-3-72DIN Rail Voltmeter72x72mmPR1859-5514
EVM-3-96DIN Rail Voltmeter96x96mmPR2559-5515

Operating Frequency(f):45-65Hz
Accuracy: 1% ±1 digit [(%10-%100) full scale]
Measuring Input (Vin): 10-600V AC (for EVM-3)
Power Consumption(Pcons):<4 VA
Burden:<1 VA (per phase)
Output Contact:5A, 250V, 1250VA (Resistive)
Enclosure:Non-flammable
Equipment Protection:Double Insulation
Measuring Category III
Ambient Temperature:-5²C; +50²C
Degree of Protection:IP 40 (Front Panel)
Installations:Flush mounting with rear terminals
Wire Cross section (for terminals):2.5mm²
Dimensions:Type PR 18, PR 25, PR 20
Weight:0.28kg (for PR 18)
0.30kg (for PR 25)
0.25kg (for PR 20)
