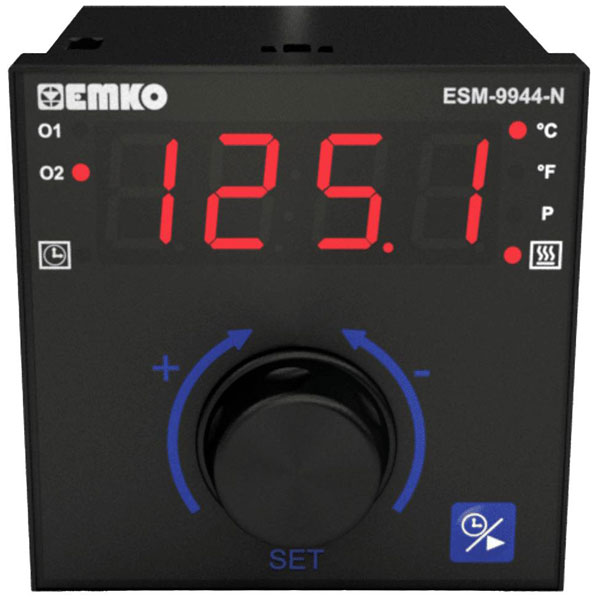

Emko ESM-9944-N Temp Controller PID Pt100 -200°C to +1700°C 5A Relay

The Emko ESM-9944-N is a versatile temperature controller supporting Bang-bang, P, PI, PD, and PID control modes. It operates with a Pt100 sensor from -200 to +1700 °C and features a 5 A relay. Typically used in industrial processes, it accurately manages and maintains precise temperature conditions.

Type	Pt100
Dim	(L x W x H) 100 x 96 x 96 mm
Factory colour	Black
Height	96mm
IP Rating	Front: IP65 / connection: IP20
Length	100mm
Min. temperature reading	-200°C
Misc Attribute	ESM-9944-N
Mounting Type	Recess-mount
Number of relay outputs	2
Outputs (thermostats)	5 A relay
Reading range	-200 up to +1700°C
Temperature Range	+1700°C
Thermostat type	Bang-bang, P, PI, PD, PID
Voltage Range	230V AC
Weight	370g
Width	96mm
