Emko ESM-9930.2 Controller PID Temp Control 200-1700°C 5A Relay 88x96x96mm

Emko
Standard range
Order Code:

09-0727

Brand: Emko MPN: ESM-9930.2.20.0.1/01.02/0.0.0.0 EAN-13: 2050006623596
Qty Unit Price (Ex VAT)
1+ £129.97
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

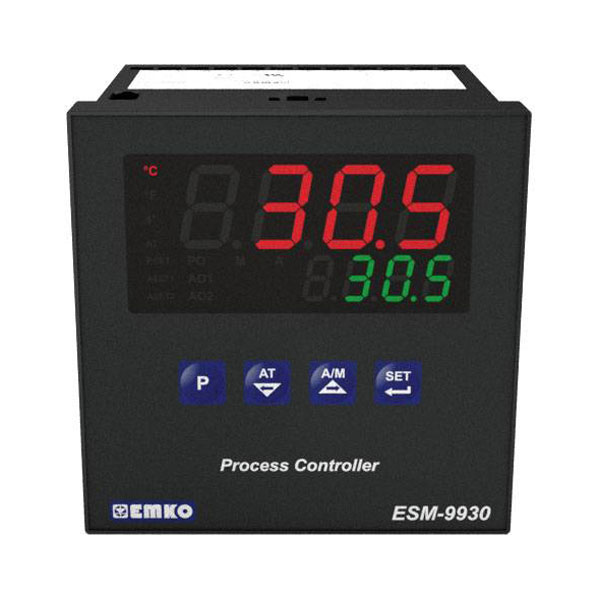

The Emko ESM-9930.2.20.0.1/01.02/0.0.0.0 universal controller is a PID temperature control device supporting various thermocouple types, from -200 up to 1700 °C. Featuring a 5 A relay and SSR output, this compact unit fits in 88 x 96 x 96 mm dimensions. It is typically used in industrial applications requiring precise temperature regulation with versatile control modes such as bang-bang
Type Universal controller
Dim (L x W x H) 88 x 96 x 96 mm
Factory colour Black
Height 96mm
IP rating Front: IP65 / connection: IP20
Length 88mm
Manufacturer part # ESM-9930.2.20.0.1/01.02/0.0.0.0
Max. temperature reading 1700°C
Min. temperature reading -200°C
Misc Attribute ESM-9930.2.20.0.1/01.02/0.0.0.0
Mounting Type Recess-mount
No. of relay outputs 3
Operating voltage 24V DC/AC
Reading range -200 up to 1700 °C
Recess depth 76mm
Sensor type PT00||L||J||K||R||S||T||B||E||N||C
Thermostat type Bang-bang, P, PI, PD, PID
Weight 280g
Width 96mm
