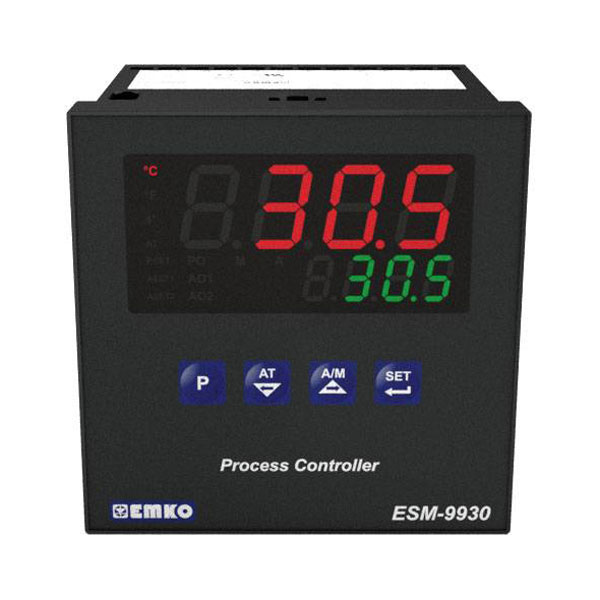

Emko ESM-9930.1.20.0.1 Universal Controller for PID with Pt100 Sensors

Emko
Order Code:

09-0726

Brand: Emko MPN: ESM-9930.1.20.0.1/01.02/0.0.0.0 EAN-13: 2050006623602

Discontinued


The Emko ESM-9930.1.20.0.1/01.02/0.0.0.0 is a universal temperature controller capable of operating with various thermocouple types from -200 to 1700°C. It features multiple control modes including bang-bang, P, PI, PD, and PID, and supports 5 A relay and SSR outputs. Typically used in industrial temperature regulation settings, this controller's dimensions are 88 x 96 x
Type Universal controller
Mounting Type Recess-mount
Dim (L x W x H) 88 x 96 x 96 mm
Factory colour Black
Height 96mm
IP Rating Front: IP65 / connection: IP20
Length 88mm
Min. temperature reading -200°C
Number of relay outputs 3
Reading range -200 up to 1700 °C
Recess depth 76mm
Temperature reading range (max.) 1700°C
Thermostat type Bang-bang, P, PI, PD, PID
Width 96mm
