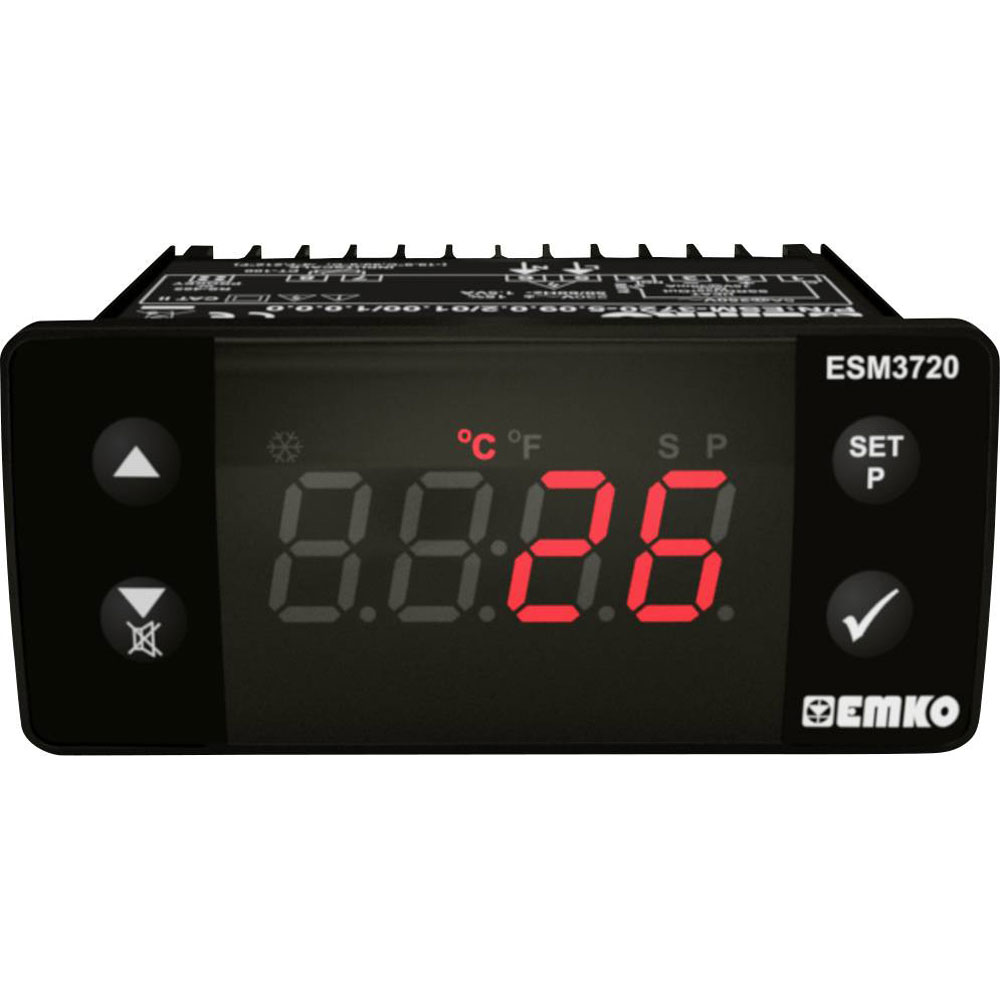

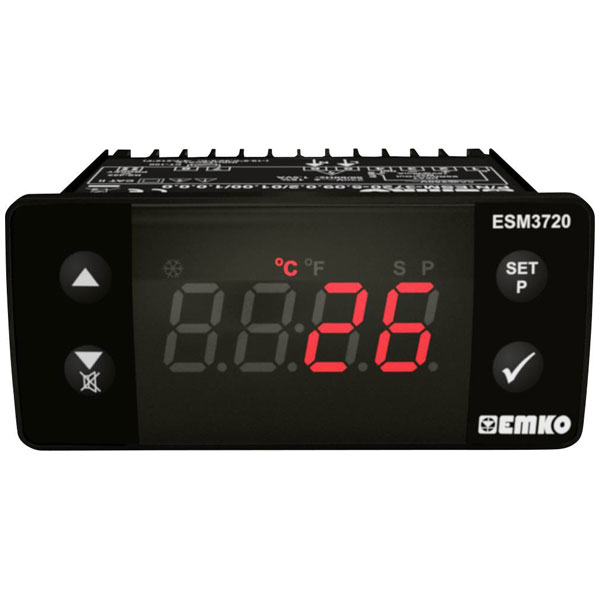

Emko ESM-3720.8.05.0.2 Temperature Controller J 0-800°C PID Alarm 65x76x35mm

Emko
Standard range
Order Code:

09-0649

Brand: Emko MPN: ESM-3720.8.05.0.2/01.00/1.0.0.0 EAN-13: 2050006623275
Qty Unit Price (Ex VAT)
1+ £71.70
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

The Emko temperature controller ESM-3720.8.05.0.2/01.00/1.0.0.0 is designed for precise temperature regulation from 0 to 800 °C using bang-bang or PID methods. Measuring 65 x 76 x 35 mm, it is ideal for controlling temperature in industrial environments with SSR outputs. This device is typically used in processes requiring stable thermal conditions, such as manufacturing and laboratory settings.
Type Temperature controller
Dim (L x W x H) 65 x 76 x 35 mm
Factory colour Black
Height 35mm
IP rating Front: IP65 / connection: IP20
Length 65mm
Manufacturer part # ESM-3720.8.05.0.2/01.00/1.0.0.0
Max. temperature reading 800°C
Min. temperature reading 0°C
Misc Attribute ESM-3720.8.05.0.2/01.00/1.0.0.0
Mounting Type Recess-mount
No. of relay outputs 2
Outputs (thermostats) SSR
Reading range 0 up to 800 °C
Recess depth 65mm
Sensor Type J
Thermostat type Bang-bang, PID
Weight 200g
Width 76mm
