Emko ESM-3712-HCN Temp Controller NTC -50 to 100°C 16A 5A Relay

Emko
Standard range
Order Code:

09-0633

Brand: Emko MPN: ESM-3712-HCN.5.18.0.1/01.00/2.0.0.0 EAN-13: 2050006622728
Qty Unit Price (Ex VAT)
1+ £53.99
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

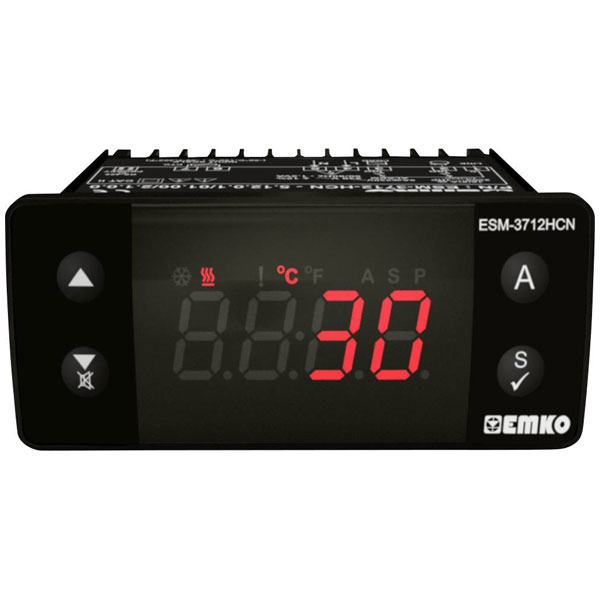

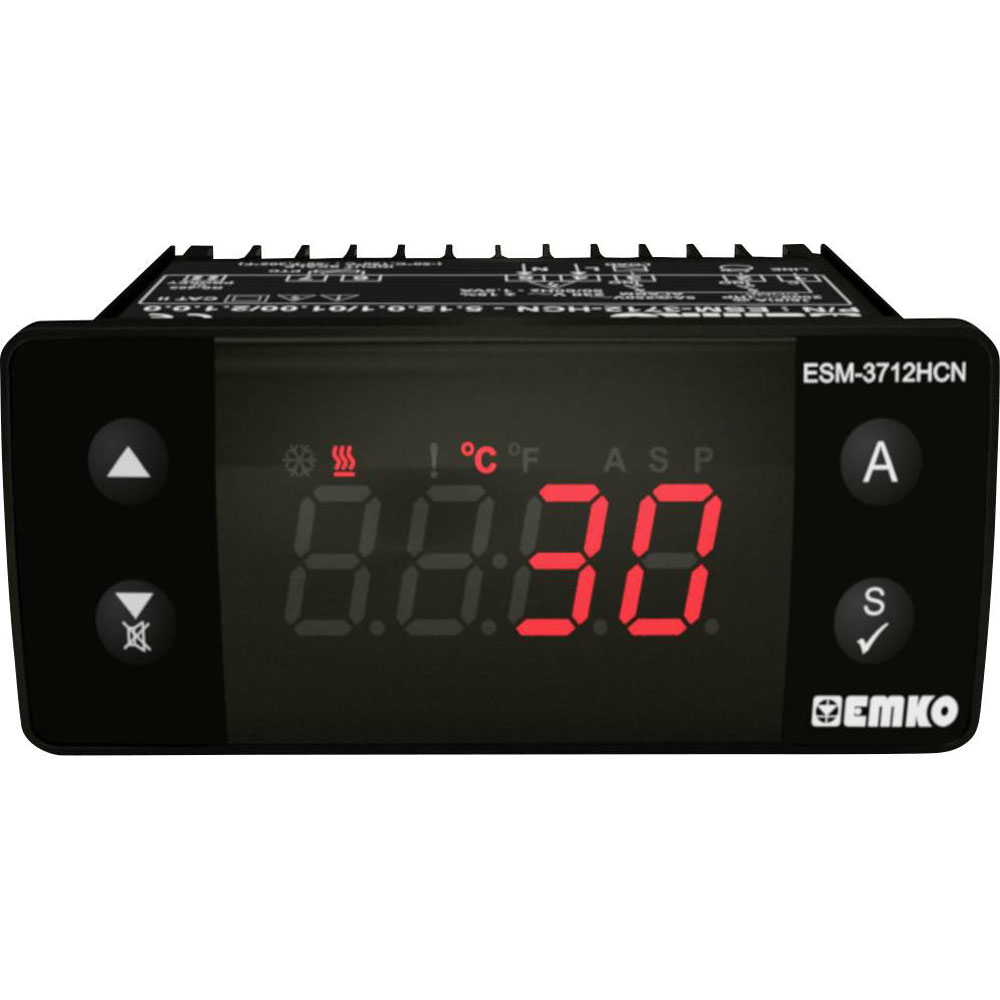

The Emko ESM-3712-HCN.5.18.0.1/01.00/2.0.0.0 is a bang-bang temperature controller featuring both a 16 A relay and a 5 A relay. It supports an NTC sensor range from -50 to 100 °C, and measures 65 x 76 x 35 mm. This temperature controller is ideal for applications requiring precise temperature regulation, such as industrial processes or climate control systems.
Type Temperature controller
Dim (L x W x H) 65 x 76 x 35 mm
Factory colour Black
Height 35mm
IP rating Front: IP65 / connection: IP20
Length 65mm
Manufacturer part # ESM-3712-HCN.5.18.0.1/01.00/2.0.0.0
Max. temperature reading 100°C
Min. temperature reading -50°C
Misc Attribute ESM-3712-HCN.5.18.0.1/01.00/2.0.0.0
Mounting Type Recess-mount
No. of relay outputs 2
Operating voltage 230V AC
Reading range -50 up to 100 °C
Recess depth 65mm
Sensor type NTC
Thermostat type Bang-bang
Weight 200g
Width 76mm
