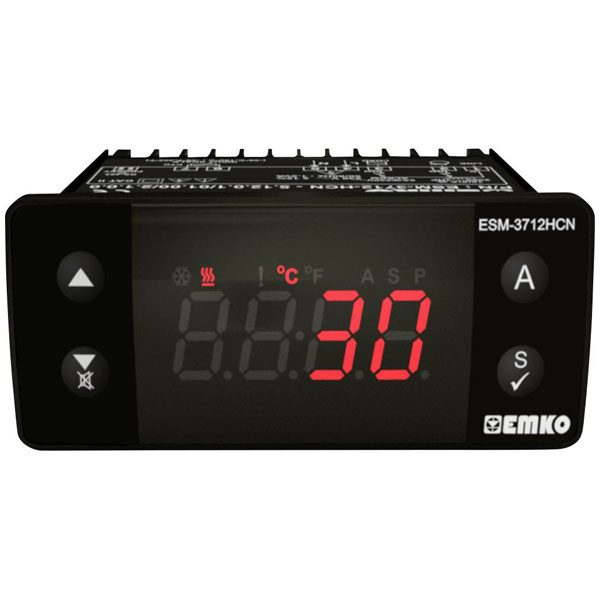

Emko ESM-3712-HCN Bang-bang Temp Controller 2pt NTC -50 to 100°C 16A Relay

Emko
Order Code:

09-0638

Brand: Emko MPN: ESM-3712-HCN.8.18.0.1/01.00/2.0.0.0 EAN-13: 2050006622698

Discontinued


The Emko ESM-3712-HCN.8.18.0.1/01.00/2.0.0.0 temperature controller features a bang-bang mechanism, suitable for managing temperatures between -50°C and 100°C. It includes a 16 A relay and a 5 A relay, housed in a compact unit measuring 65 x 76 x 35 mm. This controller is ideal for precision applications in environments requiring consistent temperature regulation.
Type Temperature controller
Mounting Type Recess-mount
Dim (L x W x H) 65 x 76 x 35 mm
Factory colour Black
Height 35mm
IP Rating Front: IP65 / connection: IP20
Length 65mm
Min. temperature reading -50°C
Number of relay outputs 2
Reading range -50 up to 100 °C
Recess depth 65mm
Temperature reading range (max.) 100°C
Thermostat type Bang-bang
Width 76mm
