Emko ESM-3711-HN Temp Controller NTC -50 to 100°C 16A Relay Timer Panel Mount

Emko
Order Code:

09-0617

Brand: Emko MPN: ESM-3711-HN.5.18.0.1/00.00/1.0.0.0 EAN-13: 2050006622605

Discontinued

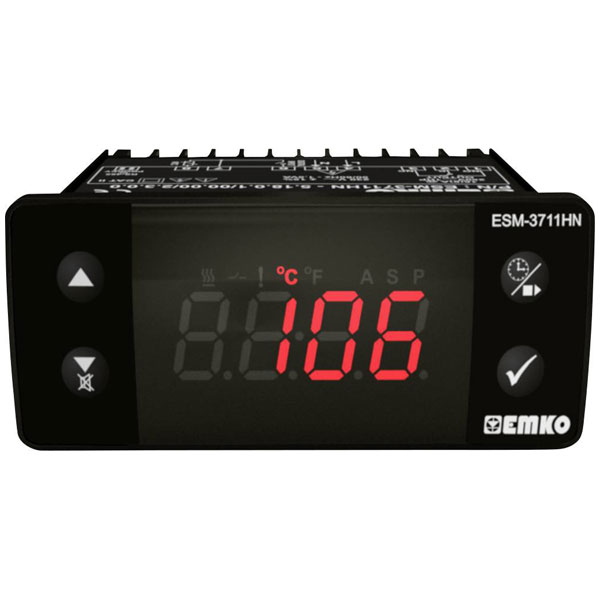

The emko ESM-3711-HN.5.18.0.1/00.00/1.0.0.0 temperature controller is a bang-bang type device suitable for -50 to 100 °C with a 16 A relay. It measures 65 x 76 x 35 mm and is ideal for precise temperature regulation in various industrial applications. This controller is commonly used in systems requiring accurate temperature control without the complexity of PID tuning.
Type Temperature controller
Mounting Type Recess-mount
Digital inputs 1
Dim (L x W x H) 65 x 76 x 35 mm
Factory colour Black
Height 35mm
IP Rating Front: IP65 / connection: IP20
Length 65mm
Min. temperature reading -50°C
Number of relay outputs 1
Outputs (thermostats) 16 A relay
Reading range -50 up to 100 °C
Recess depth 65mm
Temperature reading range (max.) 100°C
Thermostat type Bang-bang
Width 76mm
