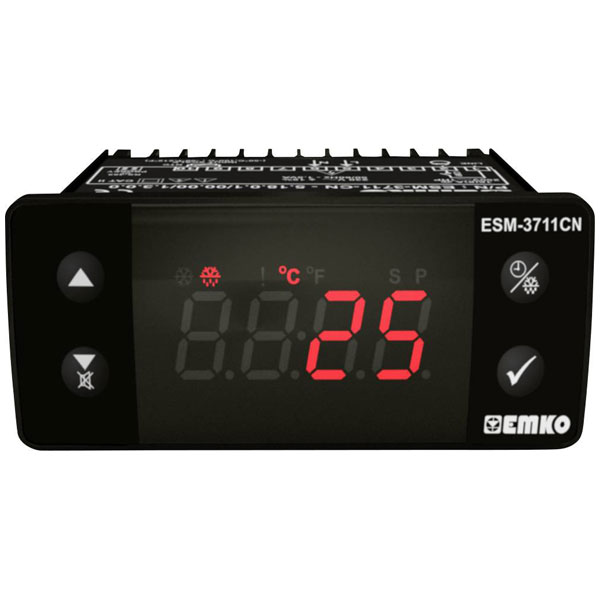

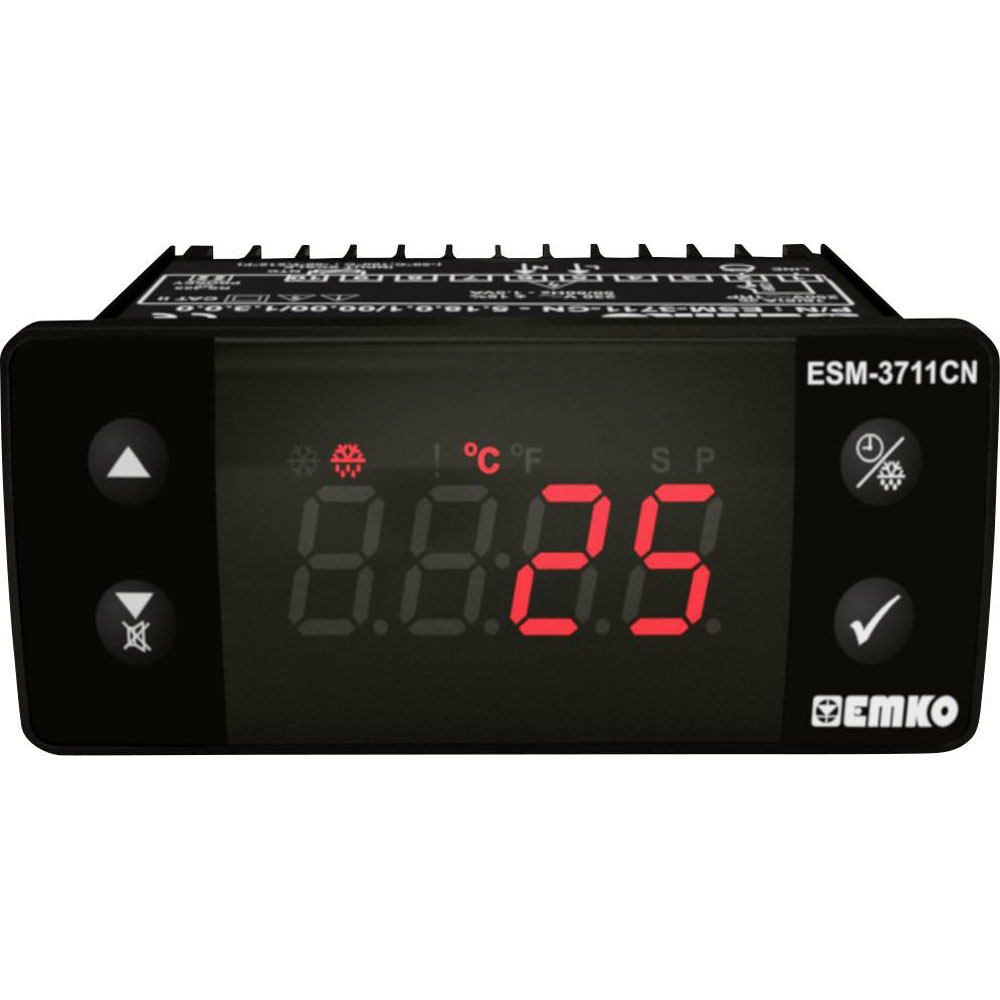

Emko ESM-3711-CN.5.18.0.1 Bang-bang Temp Controller Cooling 16A Relay

The Emko ESM-3711-CN.5.18.0.1/00.00/1.0.0.0 is a temperature controller with a bang-bang control method. It operates with an NTC sensor over a temperature range of -50 up to 100 °C and includes a 16 A relay. This device, measuring 65 x 76 x 35 mm, is typically used in applications requiring precise temperature management.

Type	NTC
Dim	(L x W x H) 65 x 76 x 35 mm
Factory colour	Black
Height	35mm
IP Rating	Front: IP65 / connection: IP20
Length	65mm
Min. temperature reading	-50°C
Mounting Type	Recess-mount
Number of relay outputs	1
Outputs (thermostats)	16 A relay
Reading range	-50 up to 100°C
Recess depth	65mm
Temperature Range	100°C
Thermostat type	Bang-bang
Voltage Range	230V AC
Weight	200g
Width	76mm
