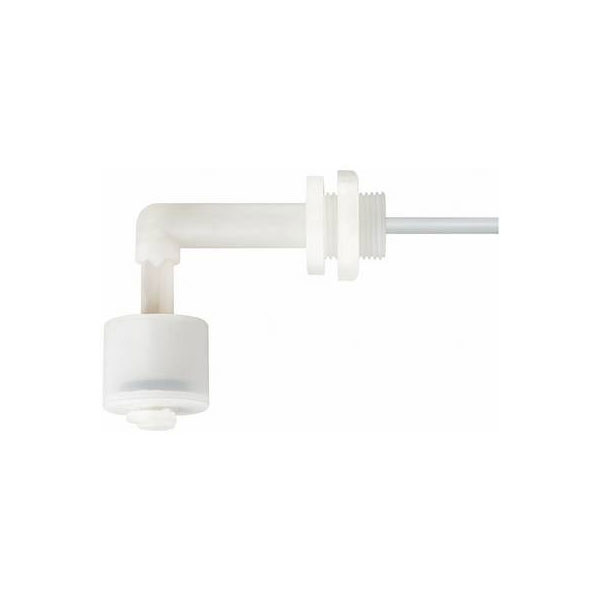

Elobau 201812 Float Switch 48 V AC 0.5 A IP67 Horizontal Install

The Elobau 201812 float switch is a durable liquid level sensor designed for applications up to 48 V AC and 0.5 A. It features an IP67 rating, making it suitable for use in harsh environments where water resistance is crucial. This device is typically used to monitor and control fluid levels in tanks and reservoirs.

Type	Float switch
Cable Length	1.00m
Maximum Voltage	48V AC
Current Rating	0.5A
Connection	Open end cable
Contact Type	1 maker
IP Rating	IP67
Material	Polypropylene
Maximum Current	0.5A
Maximum Temperature	+100°C
Min. temperature	-25°C
Recess Diameter	16.7mm
Switching Voltage	48V AC
Thread Size	G3/8"
