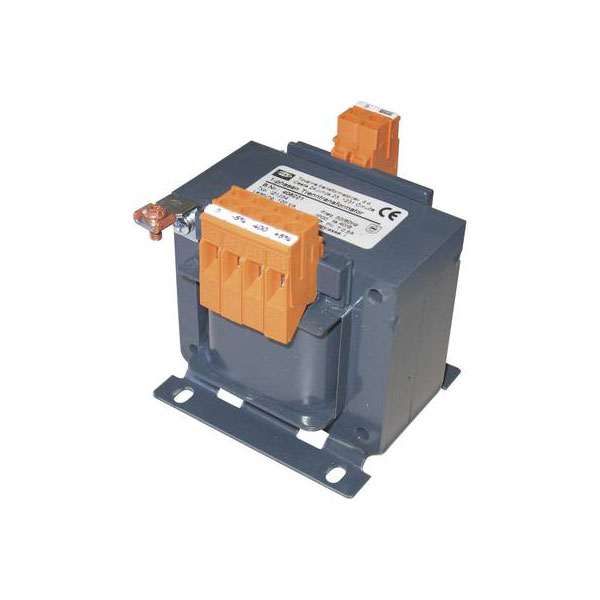

Elma TT IZ1235 Isolation Transformer 400V to 230V AC 160VA 700mA

The Elma TT IZ1235 is an isolation transformer designed for safe power conversion from 400 V to 230 V AC. It features a power rating of 160 VA and a current capacity of 700 mA, making it suitable for various automation and safety applications. Typical uses include protecting sensitive equipment from electrical disturbances in industrial and commercial settings.

Type	Isolation transformer
Primary Voltages	1 x 400 V
Secondary Voltage	230V AC
Power Rating	160VA
Connection	Screw terminal
Current Rating	700mA
Design Type	Open
Dimensions	(L x W x H) 96 x 81 x 102 mm
Frequency Range	50 - 60Hz
Height	102mm
Insulation class	Ta40/B
Length	96mm
Mounting Type	L-piece
Number of Inputs	1
Number of Outputs	1
Standards	IEC 61558-2-4, VDE 0570 Part 2-4
Weight	2.4kg
Width	81mm
