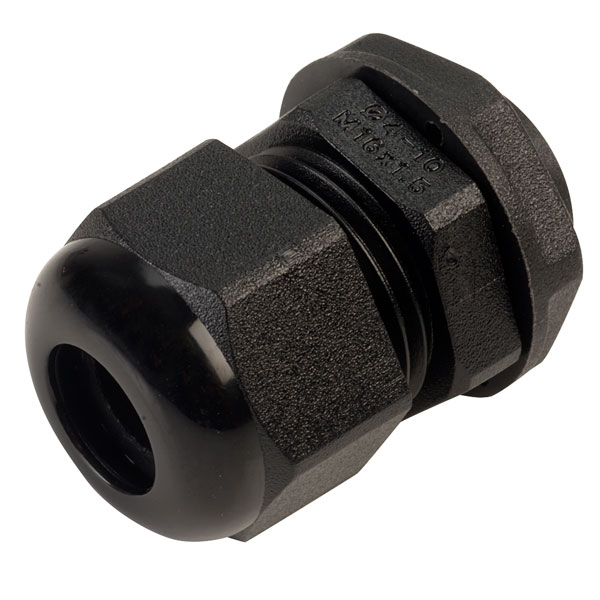

This black M16 Euro Index industrial cable gland offers a smaller working envelope on bulkhead or panel.
- Improved cable sealing and retention
- Plastic parts made from Polyamide 6,6; seal made from nitrile rubber
- Integral claw design prevents cable twisting during installation
- Supplied with moulded lock nut for increased sealing performance
- Suitable for cable diameter 4 to 10mm
- Mounting thread length 9mm
- Operating temperature -20°C to +90°C
- IP68 rated, UL94-V2 halogen free
- Designed to EN 50262:1999
Note: The locknut design has changed slightly, please review the Product Change Notification (PCN).
| Type |
Industrial |
| Body Material |
Polyamide |
| Thread Size |
M16 |
