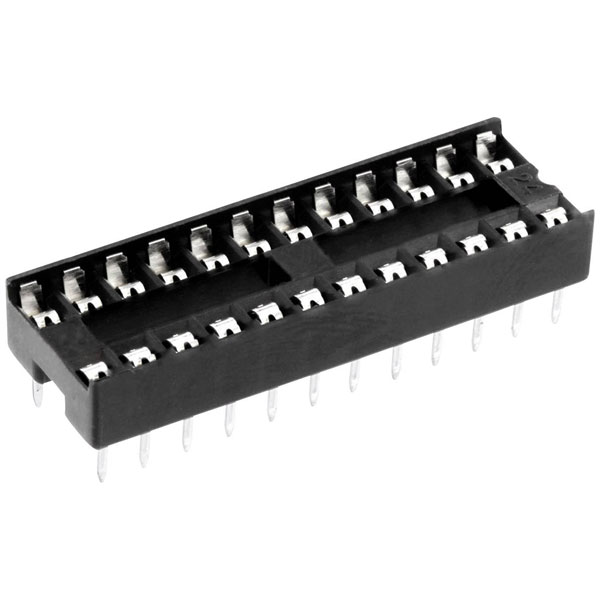

econ connect ICFG28/7 IC Socket 7.62 mm spacing 28 pins Standard type

Econ Connect ICFG28/7 IC Socket is a precision-engineered component designed for seamless integration into electronic systems requiring 28-pin connections. This standard IC socket features a contact spacing of 7.62 mm, making it compatible with a wide range of integrated circuits. The ICFG28/7 provides reliable electrical connectivity and mechanical stability for ICs, ensuring efficient performance in various electronic applications, including prototyping, testing, and circuit board assembly. Its robust construction and precise pin alignment facilitate easy insertion and replacement of integrated circuit components, meeting the high standards demanded by today's engineers and technicians in the field.

Number of Positions	28
Pitch	2.54mm
Row Pitch	7.62mm
Content	1
Cross Section	7.62mm
Dimensions	(L x W) 35.56 mm x 10.16 mm
Length	35.56mm
Material	Thermoplastic
Max. temperature	105°C
Maximum Temperature	105°C
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Number of pins	28
Type	IC socket
Width	10.16mm
