econ connect FHS43D20G SIL Socket 20 pins 2 rows standard 1pc

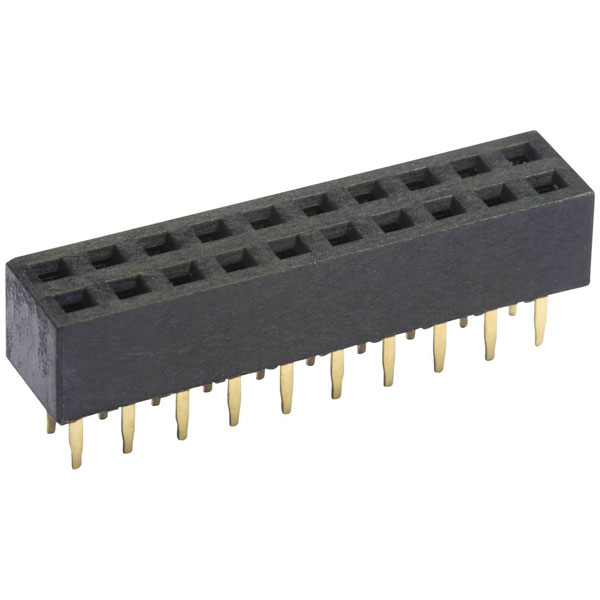

Image Representative of Range

econ connect FHS43D20G SIL Socket 20 pins 2 rows standard 1pc

econ connect
Order Code:

02-7216

Brand: econ connect MPN: FHS43D20G EAN-13: 2050002975538
Qty Unit Price (Ex VAT)
5+ £1.01
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
69 in stock, despatched in 4 working days

The econ connect SIL socket FHS43D20G features a standard 2-row configuration with 10 pins per row. This receptacle is ideal for secure electrical connections in circuit board assemblies. It is commonly used in electronic devices and industrial equipment.
Type Receptacles (standard)
Number of Positions 20
Number of Rows 2
Orientation Perpendicular (to the PCB)
Case Material Polyamide 6.6
Colour Black
Connection Print
Contact Material Copper alloy
Contact Resistance 20 MOhm.
Contact surface Gold plated
CS 2mm
Dim (L x W x H) 20.50 x 7.10 x 4.00 mm
Height 4.00mm
Industrial packaging No
Length 20.50mm
Max. temperature +105°C
Min. temperature -40°C
Nominal Current 2A
Nominal current - rounded value 2A
Nominal Voltage 500V AC
Pin length (PCB) 2.80mm
Pin Ø 0.50mm
Pin shape Rectangular
Pins per row 10
Separable No
Socket depth 4.30mm
Width 7.10mm
