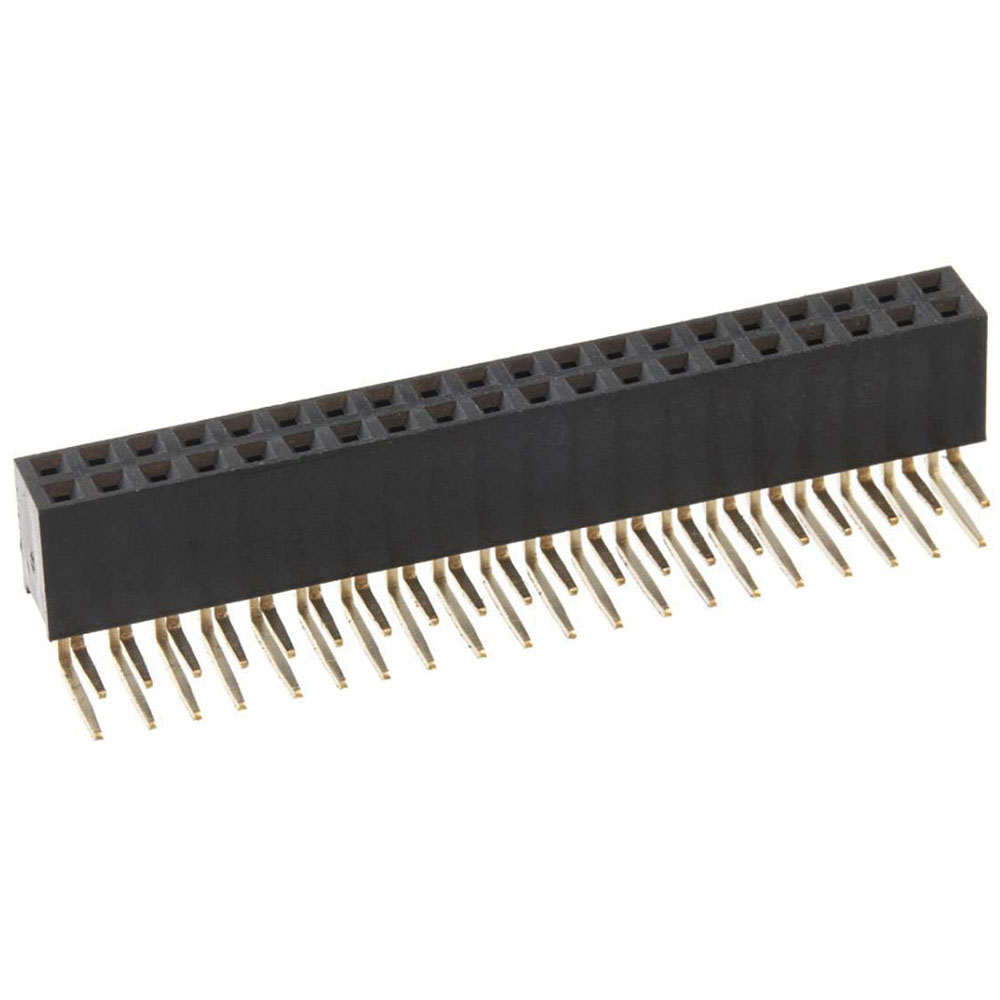

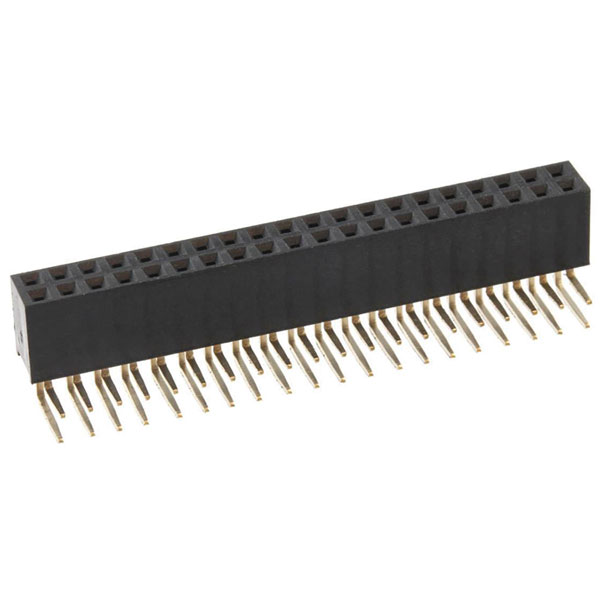

econ connect FHR63D20G standard SIL Socket 2 rows 10 pins per row

Image Representative of Range

econ connect FHR63D20G standard SIL Socket 2 rows 10 pins per row

econ connect
Standard range
Order Code:

02-7211

Brand: econ connect MPN: FHR63D20G
Qty Unit Price (Ex VAT)
1+ £0.700
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
636 in stock, despatched in 4 working days

The econ connect FHR63D20G is a standard SIL socket featuring 2 rows with 10 pins per row. Designed for efficient electrical connections, it is suitable for use in electronic assemblies and prototyping.
Board contact surface Gold plated
Case material Nylon according to UL94V0
Connection Pins
Connection angle 90°
Connector contact surface Gold plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector type Power strip, right angle
Contact material Copper alloy
CS 2mm
Factory colour Black
Manufacturer part # FHR63D20G
Max. temperature 105°C
Min. temperature -40°C
Misc Attribute FHR63D20G
No. of rows 2
Nominal current 2A
Nominal current - rounded value 2A
Pin shape Rectangular
Pins per row 10
RoHS-compliant Yes
Total number of pins 20
Type Receptacles (standard)
