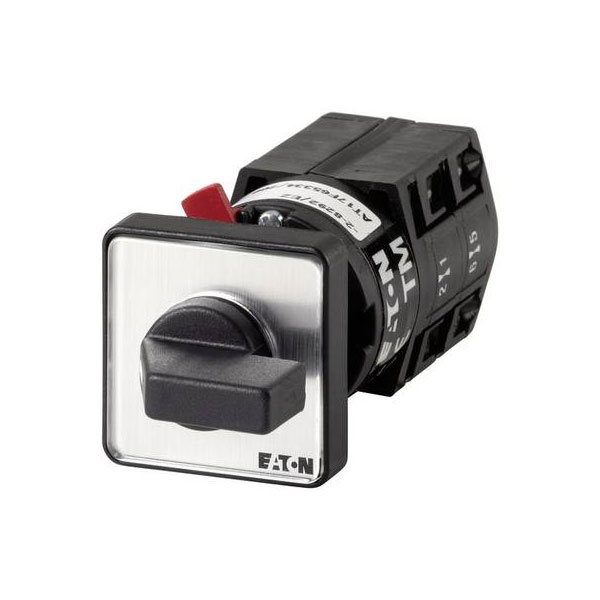

The Eaton TM-2-8550/EZ is a robust limit switch that operates at 10 A and 500 V, available in grey and black. It serves as a rotary cam or changeover switch, suitable for reversing and selection operations. This versatile switch is ideal for industrial applications requiring precise control and electrical safety.
| Type |
Limit switch |
| Complete device in housing |
FALSE |
| Connection |
Plug & Clip |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA), front side |
12 |
| Device construction |
Built-in device |
| Dim |
(L x W) 30 mm x 30 mm |
| Front shield size |
30x30 mm |
| Functions |
latch |
| IP rating |
IP65 |
| Length |
30mm |
| Max. rated operation voltage Ue AC |
500V |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute |
TM-2-8550/EZ |
| Mounting Type |
Centre lock |
| Number of pins |
1 |
| Number of Poles |
1 |
| Number of switch positions |
10 |
| Operation type |
Toggle |
| Power |
3kW |
| Print motif |
0/1/2/3/4/5/6/7/8/9 |
| Rated permanent current Iu |
10A |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting |
TRUE |
| Suitable for intermediate mounting |
FALSE |
| Switching current (max.) |
10A |
| Switching voltage |
500V |
| Type of control element |
Toggle |
| Type of switch |
Coding switch |
| Width |
30mm |
| Width in number of modular spacings |
0 |
| With retraction in 0-position |
FALSE |
| With zero (off) position |
TRUE |
