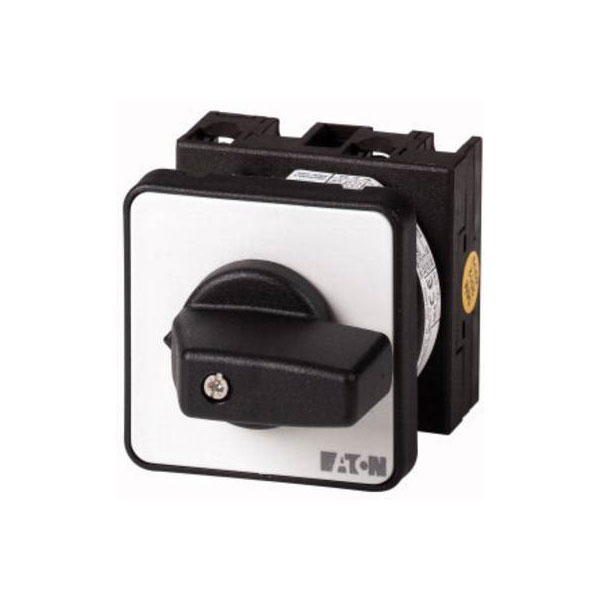

Eaton manufactures the T0-2-8900/E limit switch, a robust switching device rated at 20 A and designed to operate with a 1 x 90° motion. This grey and black switch functions as a rotary cam, reversing, changeover, and selection switch, suitable for various industrial applications requiring precise control. The device is often used in environments demanding reliable switching operations to manage electrical circuits efficiently.
| Type |
Limit switch |
| Colour control element |
Black |
| Conditioned rated short-circuit current Iq |
6kA |
| Connection |
Screws |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA) |
12 |
| Depth |
86mm |
| Device construction |
Built-in device fixed built-in technique |
| Dim |
(L x W) 48 mm x 48 mm |
| Functions |
latch |
| Height |
48mm |
| Interlockable |
FALSE |
| IP rating |
IP65 |
| Length |
48mm |
| Max. rated operation voltage Ue AC |
690V |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
On-off switch installation |
| Misc Attribute 2 |
T0-2-8900/E |
| Motor drive integrated |
FALSE |
| Motor drive optional |
FALSE |
| Mounting Type |
Recess-mount |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of pins |
3 |
| Number of Poles |
4 |
| Number of switches |
1 |
| Operation type |
Toggle |
| Power |
6.5kW |
| Print motif |
OFF/ON |
| Rated operating voltage |
690-690V |
| Rated operation power at AC-23, 400 V |
5.5kW |
| Rated operation power at AC-3, 400 V |
5.5kW |
| Rated permanent current at AC-21, 400 V |
20A |
| Rated permanent current at AC-23, 400 V |
13.3 |
| Rated permanent current Iu |
20A |
| Rated short-time withstand current lcw |
0.32kA |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting 4-hole |
TRUE |
| Suitable for front mounting centre |
FALSE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
1 x 90 ° |
| Switching current (max.) |
20A |
| Switching power at 400 V |
5.5kW |
| Thread Size |
M3.5 |
| Type of control element |
Short thumb-grip |
| Type of electrical connection of main circuit |
Screw connection |
| Version as emergency stop installation |
FALSE |
| Version as main switch |
FALSE |
| Version as maintenance-/service switch |
FALSE |
| Version as reversing switch |
FALSE |
| Version as safety switch |
FALSE |
| Voltage release optional |
FALSE |
| With pre-assembled cabling |
FALSE |
