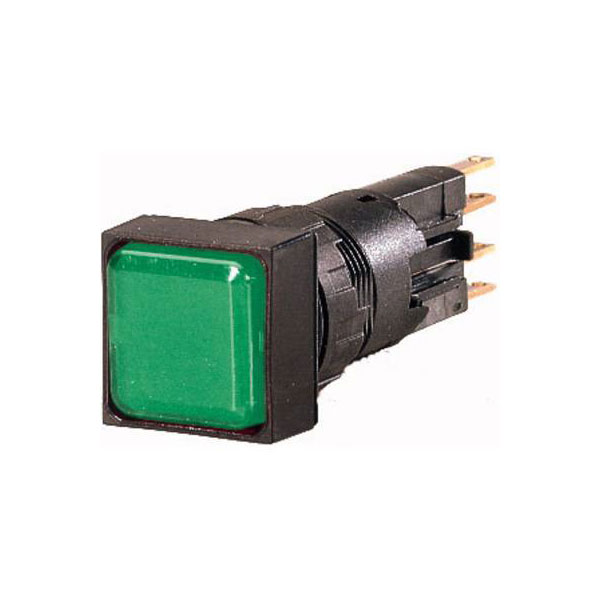

Eaton Q18LF-GN Indicator Light Green 24V AC 1 piece

The Eaton Q18LF-GN Indicator Light is a green 24 V AC device, typically used as an alarm or status indicator. As a product of Moeller and Eaton, it is known for reliability in signalling applications. Commonly utilised in control panels, it helps ensure visibility and clarity of operational statuses.

Type	Indicator light
Lamp/Lens Colour	Green
Connection	Type C CEE 7/16 plug 2.8mm
Dimensions	(L x W) 18 mm x 18 mm
Front panel max.	18mm
IP Rating	IP65
Length	18mm
Maximum Temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	Without bulb with socket W2x4.6d; max. 30 V, 1 W
Misc Attribute 2	Q18LF-GN
Operating Voltage	24V AC
Recess Diameter	16mm
Width	18mm
