Eaton M22-IY1 Housing 1-slot Floor Mount 22x80mm Anthracite

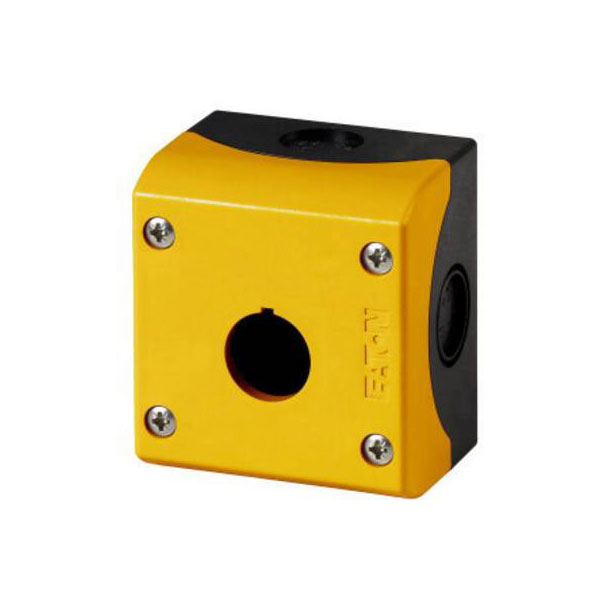

Image Representative of Range

Eaton M22-IY1 Housing 1-slot Floor Mount 22x80mm Anthracite

Eaton
Order Code:

02-6111

Brand: Eaton MPN: 216536 EAN-13: 4015082165369
Qty Unit Price (Ex VAT)
1+ £14.96
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
16 available to back orderBack-order availability date - 13/01/2026

The Eaton M22-IY1 is an anthracite installation housing designed for floor mounting with dimensions of 22 mm by 80 mm. It features one installation slot and is typically used with emergency stop components and control devices. This robust housing is suitable for various instruction and indication device setups.
Type Housing
For Use With EMERGENCY STOP/EMERGENCY STOP BUTTONS
(Ø) 22mm
Colour housing cover Yellow
Construction type housing Surface mounting housing
Degree of protection (IP) IP67/IP69K
Degree of protection (NEMA) 13
Depth 80mm
Diameter openings 22.5mm
Dim (Ø x H) 22 mm x 80 mm
Factory colour Anthracite
Housing Material Plastic
Housing material quality Other
Length 56mm
Material Plastic
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute 1 1 Built in place (For Emergency stop)
Misc Attribute 2 M22-IY1
Mounting Type Floor
Number of command positions 1
Recess diameter 22mm
Width 72mm
