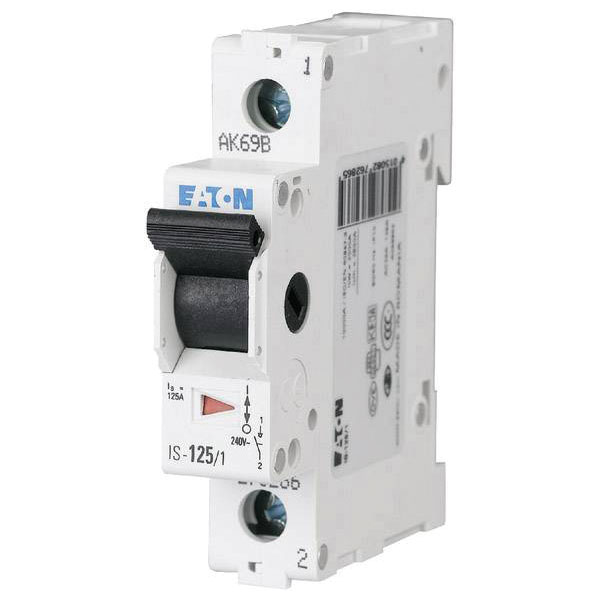

Eaton 276286 main switch 1-pin 125A 1 breaker 240V AC

This main switch, manufactured by Eaton, is a 1-pin, 125 A breaker designed for use with 240 V AC systems. The Eaton 276286 is typically used in electrical distribution for safely managing power supply in various settings. Its robust construction and reliable performance make it suitable for both industrial and residential applications.

Type	Main switch
Built-in depth	69.5mm
Colour calotte	Other
Degree of protection (IP)	IP40
Forced segregation according to DIN VDE 0113	FALSE
Imprint/indication	Symbol "arrows"
IP rating	IP40
Lamp socket	Other
Lamp Type	Other
Max. lamp power	0W
Min. rated voltage	240V
Nominal current	125A
Nominal current - rounded value	125A
Nominal voltage	240V AC
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of pins	1
Number of Poles	1
Rated Current	125A
Rated switching capacity	10kA
Rated voltage	240V
Short-circuit breaking capacity (Icw)	2kA
Switching function	Other
Voltage type	AC
Width in number of modular spacings	1
With signal lamp	FALSE
