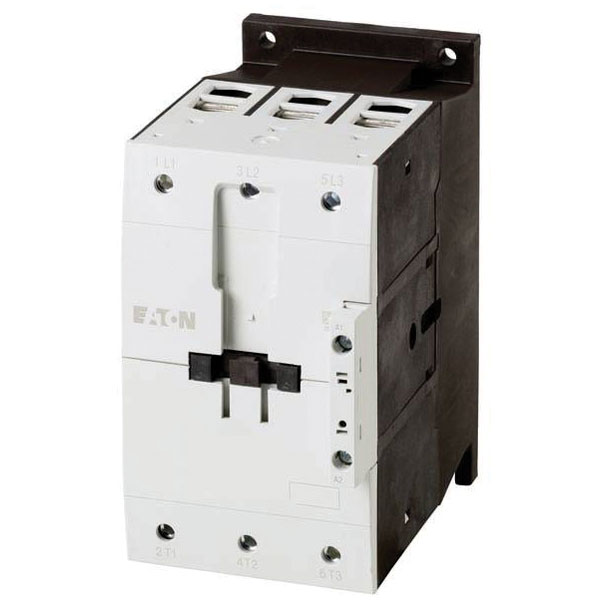

Eaton 239588 DILM150 Electrical Contactor 3 phase 75 kW 1pc

The Eaton contactor model DILM150(RAC240) is designed for electrical applications, supporting 3-phase motors up to 75 kW. This robust contactor is suitable for industrial settings where reliable power control is essential. It typically functions in circuits requiring frequent switching of large electrical loads.

Type	Electrical contactor
Connection	Screws
Contact type	3 makers
Control voltage (max.)	240V AC
Control voltage (min.)	190V AC
Control voltage range	190 - 240 V AC
Depth	160mm
Height	170mm
Misc Attribute	DILM150(RAC240)
No. of pins	3-pin
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	230-690V
Operating voltage AC 60 Hz	230-690V
Power	75kW
Rated control supply voltage AC 50 Hz	190-240V
Rated control supply voltage AC 60 Hz	190-240V
Rated control supply voltage DC	0-0V
Rated operation current Ie at AC-1, 400 V	190A
Rated operation current Ie at AC-3, 400 V	150A
Rated operation current Ie at AC-4, 400 V	65A
Rated operation power at AC-3, 400 V	75kW
Rated operation power at AC-4, 400 V	33kW
Rated operation power NEMA	93kW
RoHS-compliant	Yes
Suitable for distribution board	FALSE
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Width	90mm
