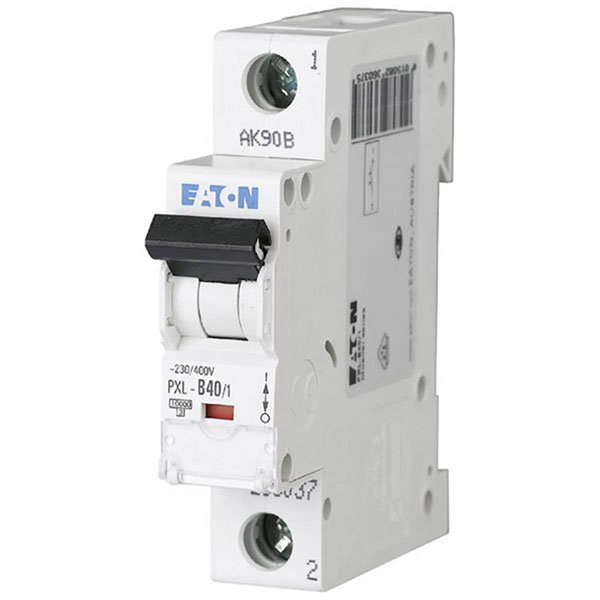

Eaton 236037 PXL-B40 Circuit breaker 1-pin 40A 230V AC LS-Switch

Eaton
Order Code:

02-6324

Brand: Eaton MPN: 236037 EAN-13: 4015082360375
Qty Unit Price (Ex VAT)
1+ £13.72
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 14 days

The Eaton 236037 circuit breaker is a single-pole device with a rating of 40 A suitable for 230 V AC systems. It is designed for electrical circuit protection, preventing overloads and short circuits. Common applications include residential and commercial electrical panels.
Type Circuit breaker
Additional equipment possible TRUE
Ambient temperature during operating -25-55°C
Built-in depth 70.5mm
Concurrently switching neutral conductor FALSE
Connectable conductor cross section multi-wired 1-25mm²
Connectable conductor cross section solid-core 1-25mm²
Current limiting class 3
Degree of protection (IP) IP20
Depth 70.5mm
Explosion-proof FALSE
Flush-mounted installation FALSE
Frequency 50-60Hz
Misc Attribute Switchgear for domestic and commercial applications
Nominal Current 40A
Nominal current - rounded value 40A
Nominal Voltage 230V AC
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Overvoltage category 3
Pollution degree 2
Power loss 3.4W
Rated Current 40A
Rated impulse withstand voltage Uimp 4kV
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 0kA
Rated Voltage 230V
Release characteristic B
Release characteristics B
Switch-off capacity 10kA
Voltage type AC
Width in number of modular spacings 1
