Eaton 236027 PXL-B Circuit breaker 1-pin 6A 230V AC line protection

Eaton
Order Code:

02-6322

Brand: Eaton MPN: 236027 EAN-13: 4015082360276
Qty Unit Price (Ex VAT)
1+ £6.81
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
14 in stock, despatched in 4 working days

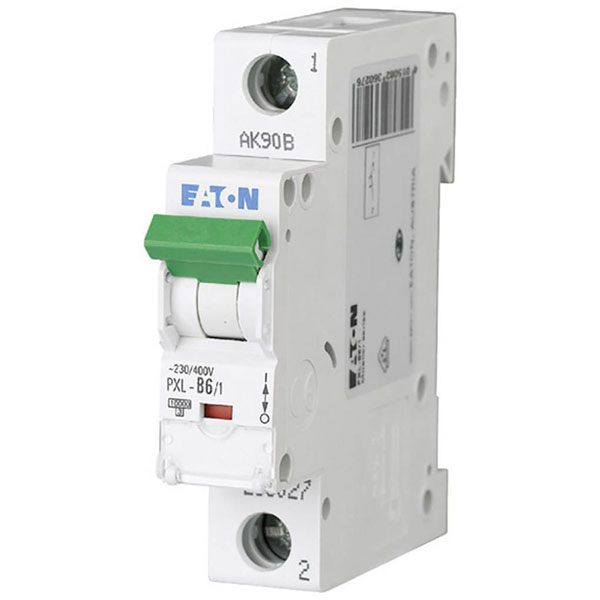

The Eaton circuit breaker, model 236027 PXL-B6/1, is a 1-pin device rated for 6 A and 230 V AC. It is designed to provide reliable overcurrent protection in electrical circuits. Typical applications include residential and commercial electrical systems where circuit protection is essential.
Type Circuit breaker
Additional equipment possible TRUE
Ambient temperature during operating -25-55°C
Built-in depth 70.5mm
Concurrently switching neutral conductor FALSE
Connectable conductor cross section multi-wired 1-25mm²
Connectable conductor cross section solid-core 1-25mm²
Current limiting class 3
Degree of protection (IP) IP20
Depth 70.5mm
Explosion-proof FALSE
Flush-mounted installation FALSE
Frequency 50-60Hz
Misc Attribute Switchgear for domestic and commercial applications
Nominal Current 6A
Nominal current - rounded value 6A
Nominal Voltage 230V AC
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Overvoltage category 3
Pollution degree 2
Power loss 1.8W
Rated Current 6A
Rated impulse withstand voltage Uimp 4kV
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 0kA
Rated Voltage 230V
Release characteristic B
Release characteristics B
Switch-off capacity 10kA
Voltage type AC
Width in number of modular spacings 1
