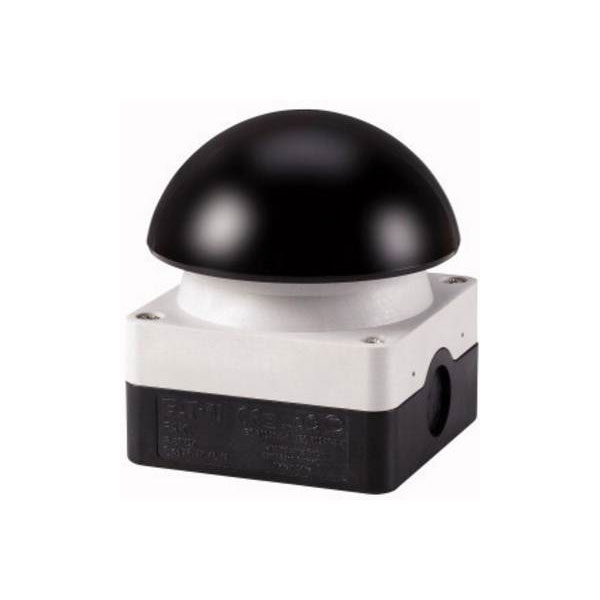

Eaton 229749 Foot Switch/Buzzer 230V AC 6A IP67 Dia94xH101mm

Image Representative of Range

Eaton 229749 Foot Switch/Buzzer 230V AC 6A IP67 Dia94xH101mm

Eaton
Order Code:

11-7307

Brand: Eaton MPN: 229749 EAN-13: 4015082297497
Qty Unit Price (Ex VAT)
1+ £56.12
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
8 in stock, despatched in 4 working days

The Eaton 229749 is a foot switch with a buzzer designed for momentary (off/on) operations, and it operates on 230 V AC with a current rating of 6 A. With dimensions of 94 mm in diameter and 101 mm in height, it boasts an IP67 rating, making it suitable for use in rugged environments. This switch is ideal for industrial applications requiring hands-free operation and visual or auditory alerts.
Type Foot switch/Buzzer
(Ø) 94mm
Actuating Force 40N
Colour cap Black
Connection Screws
Degree of protection (IP) IP67/IP69K
Degree of protection (NEMA) 4X
Dim (Ø x H) 94 mm x 101 mm
Durability 1 x 10 6 cycles
Functions momentary
Height 101mm
Hole Diameter 0mm
IP Rating IP67
Lighting type None
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute 1 FAK-S/KC11/I
Misc Attribute 2 pressing
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Spring-return TRUE
Switch position 1 x Off/(On)
Switch/button features Protruding
Switching Capacity 6 A/230V AC
Switching Current 6A
Switching current (max.) 6A
Switching function latching FALSE
Switching Voltage 230V AC
Unlocking method None
