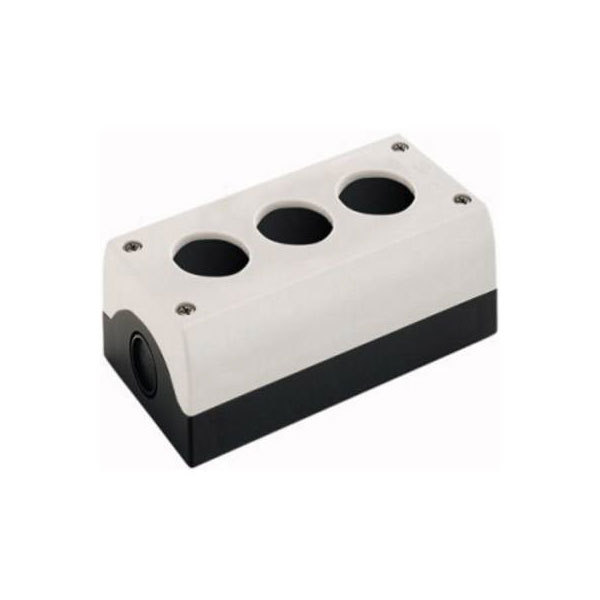

Eaton 216538 M22-I3 housing for 3 slots 22x80mm anthracite floor mount

Image Representative of Range

Eaton 216538 M22-I3 housing for 3 slots 22x80mm anthracite floor mount

Eaton
Order Code:

02-6113

Brand: Eaton MPN: 216538 EAN-13: 4015082165383
Qty Unit Price (Ex VAT)
1+ £18.70
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
58 in stock, despatched in 4 working days

Eaton's M22-I3 housing features three installation slots for floor mounting, with dimensions Ø 22 mm x H 80 mm, and comes in an anthracite finish. This component is typically used in switches and buttons or instruction and indication devices. Its robust design allows reliable use in various industrial control applications.
Type Housing
(Ø) 22mm
Colour housing cover Grey
Construction type housing Surface mounting housing
Degree of protection (IP) IP67/IP69K
Degree of protection (NEMA) 13
Depth 80mm
Diameter openings 22.5mm
Dim (Ø x H) 22 mm x 80 mm
Factory colour Anthracite
Housing Material Plastic
Housing material quality Other
Length 56mm
Material Plastic
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute 1 3 installation points
Misc Attribute 2 M22-I3
Mounting Type Floor
Number of command positions 3
Recess diameter 22mm
Width 153mm
