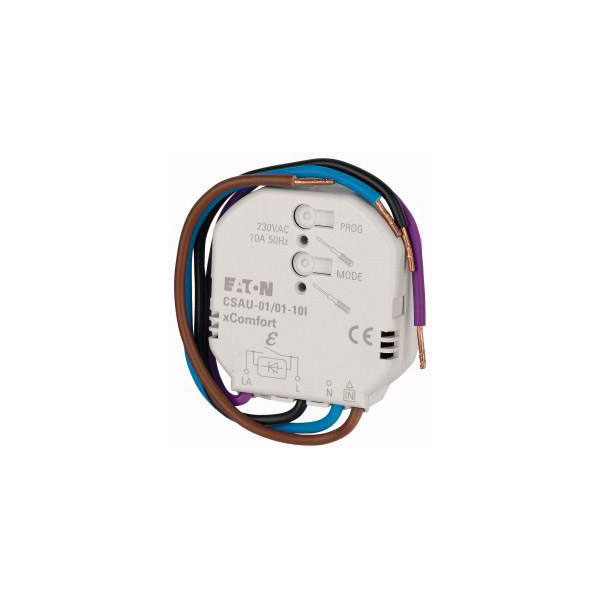

The Eaton actuator, reference CSAU-01/01-10I, offers a switching capacity of up to 2300 W, suitable for reliable and efficient power management. This device is ideal for home automation systems, providing seamless control of electrical circuits. The Eaton actuator is a trusted choice for enhancing the functionality and performance of smart home applications.
| Type |
Actuator |
| Bus module detachable |
TRUE |
| Bus system KNX |
FALSE |
| Bus system KNX-RF (Radio Frequency) |
FALSE |
| Bus system LON |
FALSE |
| Bus system Powernet |
FALSE |
| Bus system radio frequency |
TRUE |
| Data exchange |
Bidirectional (bi) |
| Data transfer (Smart Home) |
Wireless |
| Degree of protection (IP) |
IP20 |
| Depth |
18mm |
| Different phases connectable |
FALSE |
| Dim |
(W x H x D) 45.5 x 49.5 x 18 mm |
| Energy efficiency rating |
n.rel. |
| Frequency |
868.3 MHz |
| Height |
49.5mm |
| Hub |
Not required, optional for remote access |
| IP Rating |
IP20 |
| Local operation/hand operation |
TRUE |
| Max. number of switching contacts |
1 |
| Max. switching capacity |
2300W |
| Max. switching current |
10A |
| Max. switching power |
2300W |
| Max. switching power LED |
0W |
| Min. depth of built-in installation box |
18mm |
| Modular expandability |
FALSE |
| Mounting Method |
Flush mounted (plaster) |
| Mounting Type |
Flush mount |
| Number of Digital Inputs |
1 |
| Operating Voltage |
230V |
| Other bus systems |
xComfort |
| Output Power |
2300W |
| Power |
2300W |
| Power Consumption |
0.23W |
| Power supply (LOV) |
mains-powered |
| Radio frequency bidirectional |
TRUE |
| Rated Current |
10A |
| Rated operating voltage |
230-230V |
| Series |
Eaton xComfort |
| Suitable for C-load |
TRUE |
| Width |
45.5mm |
| Width in number of modular spacings |
3 |
| With bus connection |
TRUE |
| With LED indication |
TRUE |
