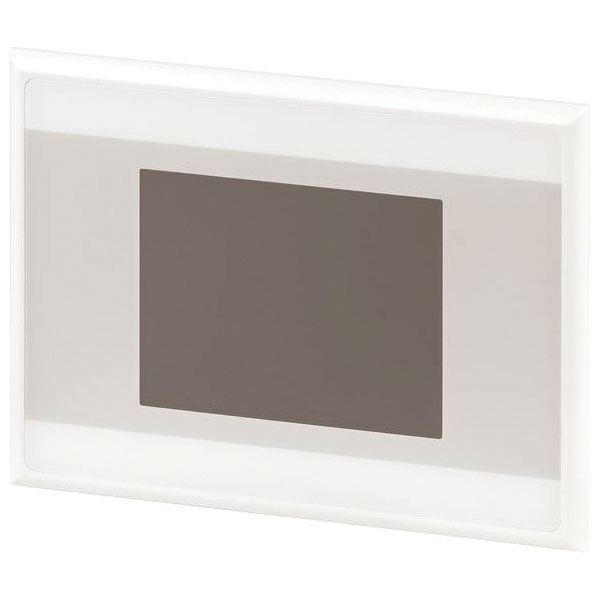

Eaton 142538 XV-Series PLC console 102-D6-70TWRC touchscreen 1pc

The Eaton 142538 PLC console is a programmable logic controller designed for automation and control tasks. It features a robust design with easy-to-use interfaces suitable for industrial environments. This device is typically used in manufacturing processes, providing reliability in operations and system management.

Type	PLC console
Additional software components, loadable	TRUE
Assembly dimensions	33mm
Built-in depth	33mm
Certified for UL hazardous location class I	FALSE
Certified for UL hazardous location class II	FALSE
Certified for UL hazardous location class III	FALSE
Certified for UL hazardous location division 1	FALSE
Certified for UL hazardous location division 2	FALSE
Certified for UL hazardous location group A (acetylene)	FALSE
Certified for UL hazardous location group B (hydrogen)	FALSE
Certified for UL hazardous location group C (ethylene)	FALSE
Certified for UL hazardous location group D (propane)	FALSE
Certified for UL hazardous location group E (metal dusts)	FALSE
Certified for UL hazardous location group F (carbonaceous dusts)	FALSE
Certified for UL hazardous location group G (non-conductive dusts)	FALSE
Colour display	TRUE
Degree of protection (IP), front side	IP65
Degree of protection (NEMA), front side	4X
Dim	(W x H) 210 mm x 135 mm
Display	Yes
Height	135mm
Height of the front	135mm
IO link master	FALSE
IP rating	IP65
Manufacturer part #	142538
Max. ambient temperature	+50°C
Max. operating voltage	28.8V DC
Memory Size	64000kB
Min. ambient temperature	0°C
Min. operating voltage	20.4V DC
Misc Attribute 1	XV-102-D6-70TWRC-10
Misc Attribute 2	TFT display, 7 inch
Mobile communications standard 3G (UMTS)	FALSE
Number of buttons with LED	0
Number of colours of the display	65536
Number of function buttons, programmable	0
Number of grey-scales/blue-scales of display	0
Number of HW-interfaces industrial Ethernet	1
Number of HW-interfaces other	1
Number of HW-interfaces parallel	0
Number of HW-interfaces RS-232	1
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	1
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	2
Number of HW-interfaces wireless	0
Number of interfaces PROFINET	0
Number of online languages	100
Number of password levels	200
Number of pixels, horizontal	800
Number of pixels, vertical	480
Number of system buttons	1
Operating Temperature	0-50°C
Operating voltage	20.4 - 28.8 V DC
Power Consumption	10W
Process default value (input) possible	TRUE
Process value representation (output) possible	TRUE
Radio standard Bluetooth	FALSE
Radio standard GPRS	FALSE
Radio standard GSM	FALSE
Radio standard WLAN 802.11	FALSE
Screen diagonal	7in
Suitable for rail mounting	FALSE
Suitable for safety functions	FALSE
Supply voltage AC 50 Hz	0-0V
Supply voltage AC 60 Hz	0-0V
Supply voltage DC	20.4-28.8V
Supporting protocol for ASI	FALSE
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for CAN	TRUE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherCAT	FALSE
Supporting protocol for EtherNet/IP	TRUE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for LON	FALSE
Supporting protocol for Modbus	TRUE
Supporting protocol for other bus systems	TRUE
Supporting protocol for PROFIBUS	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	FALSE
Supporting protocol for PROFIsafe	FALSE
Supporting protocol for SafetyBUS p	FALSE
Supporting protocol for SERCOS	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for TCP/IP	TRUE
Touch technology	Resistive touch
Type of display	TFT
Usable project memory/user memory	64000 kByte
Voltage type (supply voltage)	DC
Wall mounting/direct mounting	FALSE
Width	210mm
Width of the front	210mm
With alpha numeric keyboard	TRUE
With message indication	TRUE
With message system (incl. buffer and confirmation)	TRUE
With numeric keyboard	TRUE
With printer output	TRUE
With recipes	TRUE
With SW interfaces	TRUE
