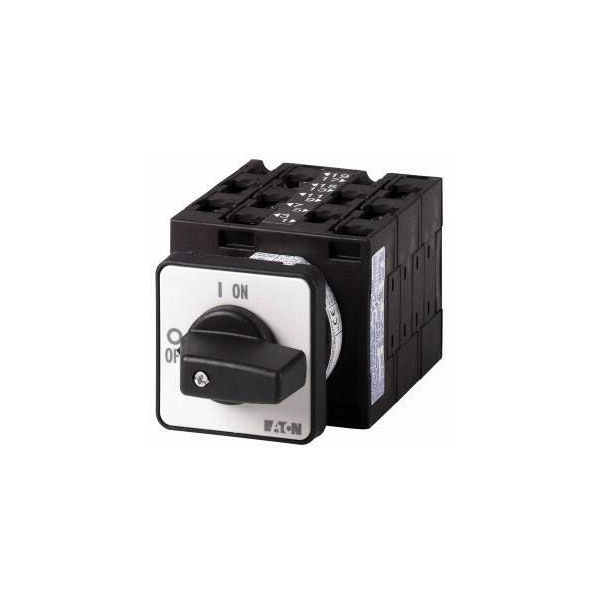

Eaton 013971 Uniselector 690V single unit

The Eaton T0-4-8251/E switch is designed for use in electrical systems with a voltage rating up to 690 V. This Uniselector switch is suitable for industrial applications requiring reliable and robust control of circuits. It is typically used for switching operations in machinery and panel boards.

Type	Uniselector
Complete device in housing	FALSE
Degree of protection (IP), front side	IP65
Degree of protection (NEMA), front side	12
Device construction	Built-in device
Front shield size	48x48 mm
IP rating	IP65
Max. rated operation voltage Ue AC	690V
Misc Attribute 1	Selector switch
Misc Attribute 2	T0-4-8251/E
Number of Poles	2
Number of switch positions	4
Rated permanent current Iu	20A
Suitable for distribution board installation	FALSE
Suitable for floor mounting	FALSE
Suitable for front mounting	TRUE
Suitable for intermediate mounting	FALSE
Switching current (max.)	20
Switching voltage	690V
Type of control element	Toggle
Type of switch	Level switch
Width in number of modular spacings	0
With retraction in 0-position	FALSE
With zero (off) position	FALSE
