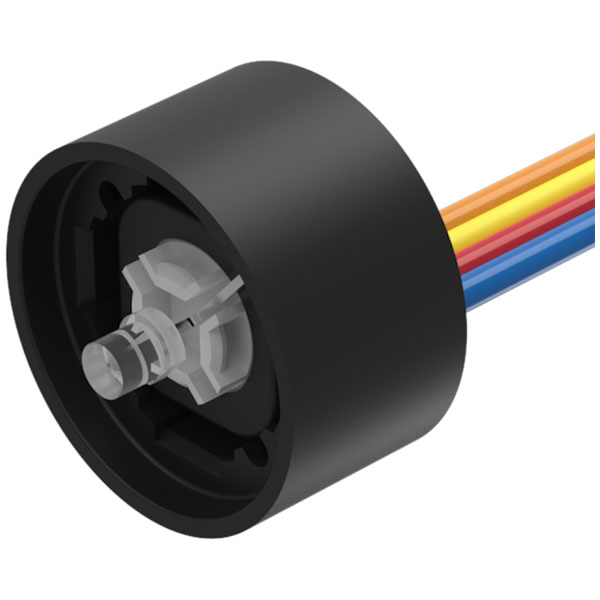

EAO 84-8511.9640 Switching Element illuminated Single Chip LED white 24VDC/10mA

EAO 84-8511.9640 is a switching element that includes illumination via a single chip white LED, designed to operate at 24VDC with a current rating of 10 milliamperes. This component is tailored for integration into systems where precise control and visual indication are critical, owing to its efficient LED technology which provides clear, consistent illumination across various environmental conditions. Engineers frequently utilise this switching element in industrial control panels, automation systems, and human-machine interfaces.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Illumination Colour Concat	White
Lamp/Lens Colour	White
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Concat	24 V ±10 % / 10mA
Operating Current Concat	10mA
Operating Temperature	– 25 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc ±10 %
Output Hsd	Yes
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Flat ribbon cable
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.0149
