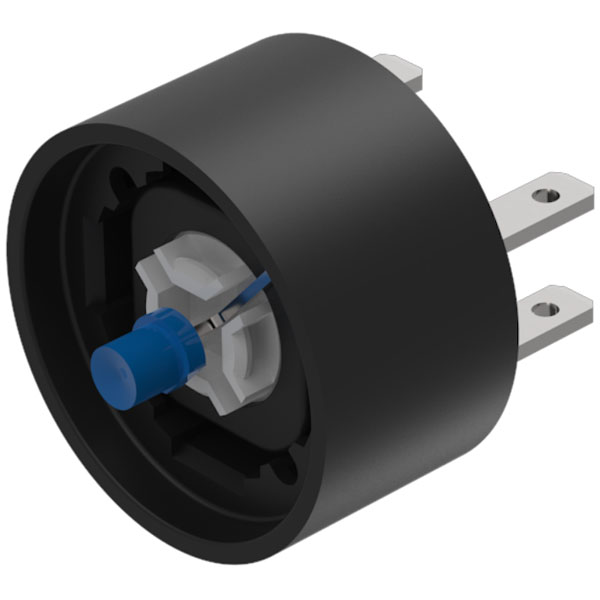

EAO 84-8511.6620 Switching Element with illumination Single Chip LED blu

EAO 84-8511.6620 is a switching element that incorporates a single chip LED for illumination, specifically featuring a blue light emission. This component is designed for integration into control panels, providing a clear and distinct visual indication when activated, critical for operations that require precise status feedback. Its robust design ensures reliable performance under various environmental conditions, making it suitable for use in industrial machinery, automotive dashboards, and other engineering applications where durability and visibility are paramount.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Illumination Colour Concat	Blue
Lamp/Lens Colour	Blue
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Concat	24 V ±10 % / 10mA
Operating Current Concat	10mA
Operating Temperature	– 25 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc ±10 %
Output Hsd	Yes
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Plug-in terminal, 2.8 X 0.8 Mm
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.00663
