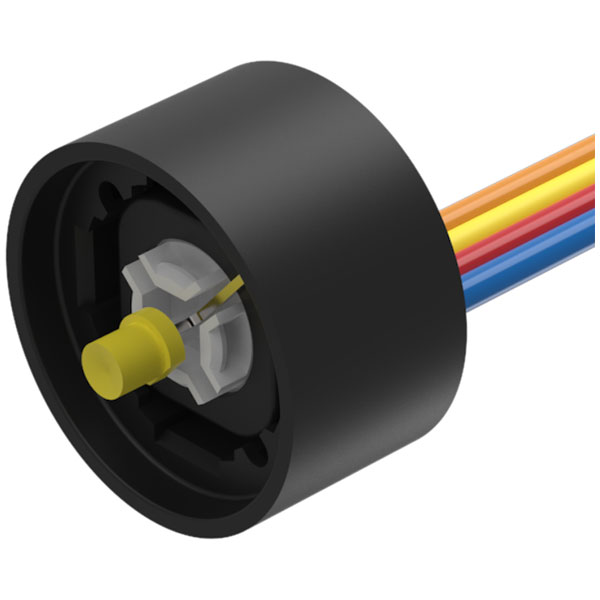

EAO 84-8511.4640 Switching Element with illumination Single Chip LED y

EAO 84-8511.4640 refers to a robust switching element that features integrated illumination utilising a single chip LED. This component is designed for applications where clear visual status indication is essential, making it well-suited for industries such as transportation, industrial machinery, and control panels. Its construction ensures reliability and durability in demanding environments, providing consistent performance over extended periods. The integration of a single chip LED allows for efficient energy consumption and straightforward integration into existing systems.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Illumination Colour Concat	Yellow
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Concat	24 V ±10 % / 10mA
Operating Current Concat	10mA
Operating Temperature	– 25 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc ±10 %
Output Hsd	Yes
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Flat ribbon cable
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.01489
