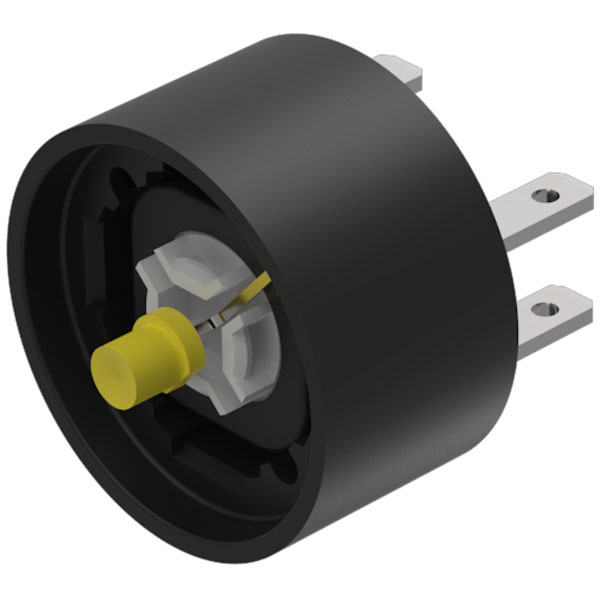

EAO 84-8511.4620 Switching Element illuminated Single Chip LED yellow 24VDC

EAO 84-8511.4620 Switching Element with illumination is a precisely engineered component designed for reliable performance. It features a single-chip LED in yellow, optimised for use with a 24-volt direct current supply, and is renowned for its efficient energy consumption and long-lasting illumination capabilities. This switch is commonly employed in control panels, industrial machinery, and automation systems, where visual feedback and operator interface are critical.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Illumination Colour Concat	Yellow
Lamp/Lens Colour	Yellow
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Concat	24 V ±10 % / 10mA
Operating Current Concat	10mA
Operating Temperature	– 25 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Dc ±10 %
Output Hsd	Yes
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Plug-in terminal, 2.8 X 0.8 Mm
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.00663
