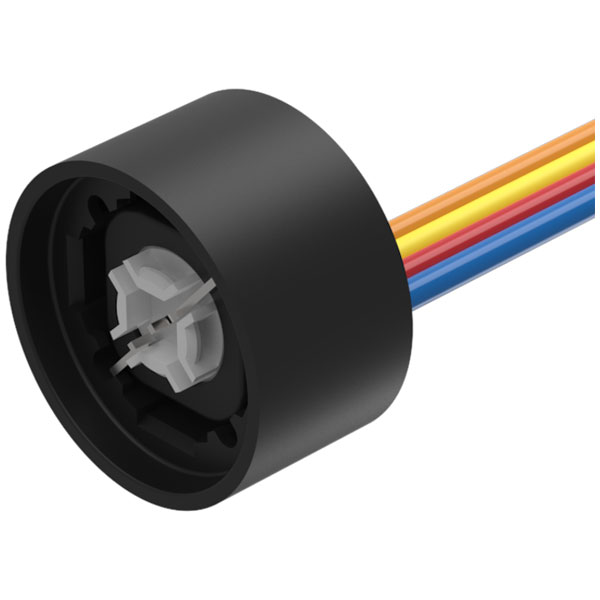

EAO 84-8510.0040 Switching Element 1NO gold, cable 300mm

EAO 84-8510.0040 is a switching element featuring a single normally open (1NO) contact configuration with a gold contact surface, which is particularly suitable for low voltage and low current applications due to its excellent conductivity and resistance to corrosion. The unit includes a 300 mm cable for convenient electrical connection, enhancing ease of integration into various electrical systems. Designed primarily for use in human-machine interface applications and control panels, this switching element is suitable for environments where reliable performance and durability are important.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Temperature	– 25 °c … + 70°C
Output Hsd	Yes
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Flat ribbon cable
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.00473
