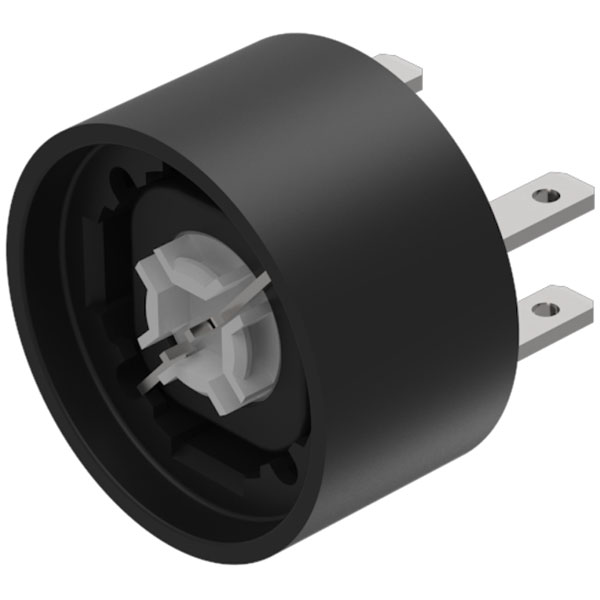

EAO 84-8510.0020 Switching Element 1NO ST/PT gold

EAO 84-8510.0020 is a robust switching element characterised by its single normally open (1NO) contact configuration and surface or panel terminal (ST/PT) connection type, optimised with gold contacts for enhanced conductivity and reliability in low voltage applications. This element is meticulously designed to ensure dependable performance, making it a suitable choice for use in industrial control panels and systems where precise and reliable switch actuation is crucial. Its compact and efficient design facilitates integration into a variety of electronic systems.

Type	Switch element
Contacts Concat	1 No
Contacts Material	Gold-plated Silver
Erp Ehq Custom Number	8536.5000
Material	Plastic
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Operating Temperature	– 25 °c … + 70°C
Output Hsd	Yes
Product Variant	Ch
Shock Resistance	Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27)
Switching System	Short-travel Element
Terminal Concat	Plug-in terminal, 2.8 X 0.8 Mm
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.00615
