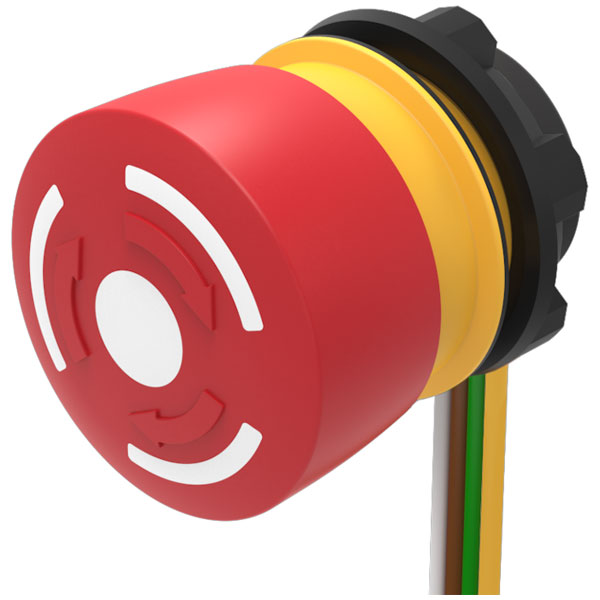

EAO 84-5330.0040 E-Stop Pushbutton, is a proficient safety component designed to provide an immediate operational halt in emergency situations. This unit features a 1NC+1NO contact configuration, allowing for both normally closed and normally open operation, thereby providing versatile integration into existing systems. The device is structured with a non-illuminated, green position indication ring that enhances visibility without the need for auxiliary lighting, ensuring clear and prompt access during critical scenarios.
| Type |
E-Stop Pushbutton |
| IP Rating |
Ip65, Ip66, Ip67, According To Din En 60529 |
| Approbations |
Cb (iec 60947-5-1. Iec60947-5-5), Ccc, En Iso 13850, Ul Nisd |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Saline Mist: 96 Hours, + 35 °c In Chemical Solution Nacl, As Per En Iec 60068-2-11 | Dry Heat: 96 Hours, + 70 °c, As Per En Iec 60068-2-2 | Low Temperature: 96 Hours, – 40 °c (as Per En Iec 60068-2-1) | Simulated Solar Radiation Test Sa2 And Weathering Test Sb1 As Per En Iec 60068-2-5 |
| Conformities |
Ce, Ukca, 2006 / 42 / Ec (md), 2011 / 65 / Ec (rohs) |
| Contacts Concat |
1 Nc / 1 No |
| Contacts Material |
Gold |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Dimension Concat |
Ø 32mm |
| Front Form |
Round |
| Lens Colour |
Red-white |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Plastic, According To Ul 94 V0 |
| Lens Shape |
Mushroom-head |
| Material |
Plastic, According To Ul 94 V0 |
| Mechanical Lifetime |
250 000 Cycles Of Operation |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 70°C |
| Output Hsd |
Yes |
| Pollution degree |
3, According To En Iec 60947-1 |
| Protection Class |
Ii, According To En / Iec 60947-5 |
| Release Type |
Twist To Unlock |
| Shock Resistance |
Max. 150 M / S², Pulse Width 11 Ms, 3-axis, (semi-sinusoidal As Per En Iec 60068-2-27) |
| Switching Action Concat |
Maintained |
| Switching System |
Slow-make Switching Element |
| Terminal Concat |
Flat ribbon cable 300mm |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6) |
| Weight |
0.036 |
