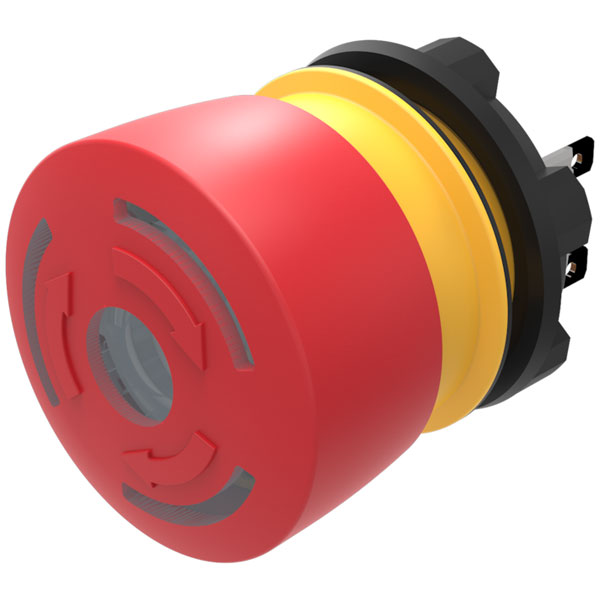

EAO 84-5321.2B20 E-Stop Pushbutton 1NC Illum LED Red Maint Plug-in Grn posn ring

EAO 84-5321.2B20 is an emergency stop (E-Stop) pushbutton designed with a normally closed (1NC) contact configuration. This component is illuminated with a red LED, providing clear visibility and status indication in safety-critical situations. The pushbutton features both solder and plug-in connection options, offering flexibility in installation and integration into control panels or machinery systems. Commonly deployed in industrial automation environments, it is used in applications where immediate shutdown of machinery is necessary.

Type	E-Stop Pushbutton
IP Rating	Ip65, Ip66, Ip67, According To Din En 60529
Approbations	Cb (iec 60947-5-1. Iec60947-5-5), Ccc, En Iso 13850, Ul Nisd
Climate Resistance	Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Saline Mist: 96 Hours, + 35 °c In Chemical Solution Nacl, As Per En Iec 60068-2-11 | Dry Heat: 96 Hours, + 70 °c, As Per En Iec 60068-2-2 | Low Temperature: 96 Hours, – 40 °c (as Per En Iec 60068-2-1) | Simulated Solar Radiation Test Sa2 And Weathering Test Sb1 As Per En Iec 60068-2-5
Conformities	Ce, Ukca, 2006 / 42 / Ec (md), 2011 / 65 / Ec (rohs)
Contacts Concat	1 Nc
Contacts Material	Gold
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Dimension Concat	Ø 32mm
Front Form	Round
Illumination Colour Concat	Red
Lens Colour	Red
Lens Illumination	Illuminated
Lens Material	Plastic, According To Ul 94 V0
Lens Shape	Mushroom-head
Material	Plastic, According To Ul 94 V0
Mechanical Lifetime	250 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Concat	5 - 30 V / 9.7 - 12.4mA
Operating Current Concat	9,7 - 12,4mA
Operating Temperature	– 25 °c … + 70°C
Operating Voltage 1 Concat	5 - 30 V
Operating Voltage Concat	5 - 30 V Dc (led)
Output Hsd	Yes
Pollution degree	3, According To En Iec 60947-1
Protection Class	Ii, According To En / Iec 60947-5
Release Type	Twist To Unlock
Shock Resistance	Max. 150 M / S², Pulse Width 11 Ms, 3-axis, (semi-sinusoidal As Per En Iec 60068-2-27)
Switching Action Concat	Maintained
Switching System	Slow-make Switching Element
Terminal Concat	Plug-in terminal, 2.8 X 0.5 Mm
Thermal Current Ith	5 A
Vibration Resistance	Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6)
Weight	0.028
