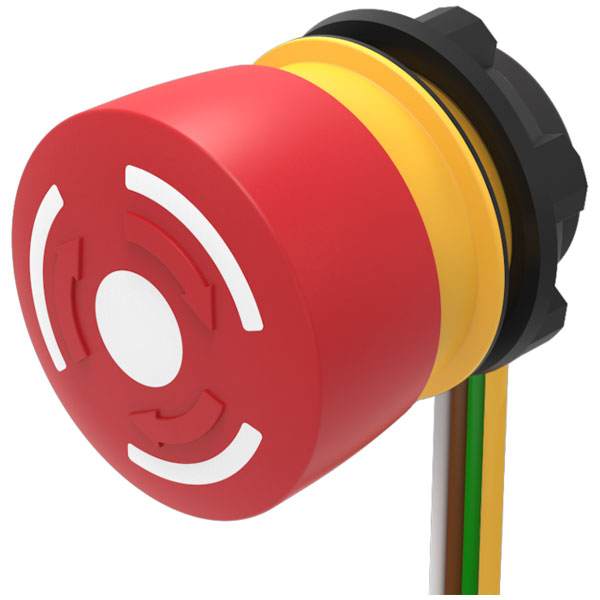

EAO 84-5240.0040 is an emergency stop pushbutton designed for critical safety applications. This device features two normally closed (NC) contacts ensuring reliable disconnection in case of an emergency. The pushbutton is non-illuminated and is equipped with a black position ring for clear visual distinction. It includes a 300mm cable, facilitating easy integration into a variety of control circuits. Typical engineering applications for this component include industrial machinery, conveyor systems, and automation equipment.
| Type |
E-Stop Pushbutton |
| IP Rating |
Ip65, Ip66, Ip67, According To Din En 60529 |
| Approbations |
Cb (iec 60947-5-1. Iec60947-5-5), Ccc, En Iso 13850, Ul Nisd |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Saline Mist: 96 Hours, + 35 °c In Chemical Solution Nacl, As Per En Iec 60068-2-11 | Dry Heat: 96 Hours, + 70 °c, As Per En Iec 60068-2-2 | Low Temperature: 96 Hours, – 40 °c (as Per En Iec 60068-2-1) | Simulated Solar Radiation Test Sa2 And Weathering Test Sb1 As Per En Iec 60068-2-5 |
| Conformities |
Ce, Ukca, 2006 / 42 / Ec (md), 2011 / 65 / Ec (rohs) |
| Contacts Concat |
2 Nc |
| Contacts Material |
Gold |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Dimension Concat |
Ø 32mm |
| Front Form |
Round |
| Lens Colour |
Red-white |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Plastic, According To Ul 94 V0 |
| Lens Shape |
Mushroom-head |
| Material |
Plastic, According To Ul 94 V0 |
| Mechanical Lifetime |
250 000 Cycles Of Operation |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 70°C |
| Output Hsd |
Yes |
| Pollution degree |
3, According To En Iec 60947-1 |
| Protection Class |
Ii, According To En / Iec 60947-5 |
| Release Type |
Twist To Unlock |
| Shock Resistance |
Max. 150 M / S², Pulse Width 11 Ms, 3-axis, (semi-sinusoidal As Per En Iec 60068-2-27) |
| Switching Action Concat |
Maintained |
| Switching System |
Slow-make Switching Element |
| Terminal Concat |
Flat ribbon cable 300mm |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
Max. 50 M / S² From 10 Hz ... 500 Hz, 10 Cycles, 3-axis (sinusoidal En Iec 60068-2-6) |
| Weight |
0.01546 |
