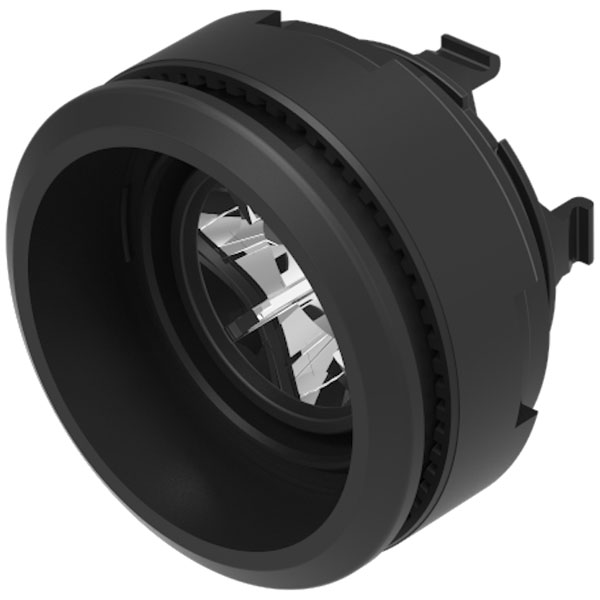

EAO 84-1101.0 Illuminated pushbutton-actuator black D25 plastic

EAO 84-1101.0 is an illuminated pushbutton actuator that is designed for durability and reliability in demanding environments. This component features a black housing made from durable plastic, with a diameter of 25 mm, ensuring compatibility with a wide range of control panels. The actuator includes efficient illumination for enhanced visibility, which is particularly beneficial in low-light conditions or environments where quick identification of controls is critical. Typical engineering applications for this type of component include industrial machinery interfaces and control panels.

Type	Pushbutton actuator
IP Rating	Ip65, Ip67
Approbations	Ebc (tsi Prm), Nff
Climate Resistance	Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Rapid Change Of Temperature: 100 Cycles, – 40 °c … + 80 °c, As Per En / Iec 60068-2-14
Conformities	Ce, Ukca, 2011 / 65 / Ec (rohs)
Design	Flush
Dimensions Concat	Ø 25mm
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	De
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 25mm
Front Form	Round
Lens Illumination	Illuminated
Mechanical Lifetime	=1 Mil. Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 70°C
Output Hsd	Yes
Switching Action Concat	Momentary
Switching System	Short-travel Element
Weight	0.00709
